TPD4S009DCKR

Product Summary

The TPD4S009DCKR is an electrostatic discharge (ESD) solution for high-speed differential lines. The TPD4S009DCKR offers four ESD clamp circuits for dual differential lines. The monolithic silicon technology allows matching between the differential signal pairs. The excellent matching between the differential pair signal lines (0.05-pF line-line) enables this device to operate at high-speed differential data rates (3-dB bandwidth > 4 GHz). The TPD4S009DCKR is suitable for high-speed differential applications, such as high-definition multimedia interface (HDMI), low-voltage differential signaling (LVDS), serial advanced technology attachment (SATA), Ethernet, 1394 (FireWire®), etc. The TPD4S009DCKR complies with IEC 61000-4-2 (Level 4) ESD. This device is offered in space-saving DBV, DCK, and DRY packages. The TPD4S009DCKR is characterized for operation over the ambient air temperature range of –40℃ to 85℃.

Parametrics

TPD4S009DCKR absolute maximum ratings: (1)VCC Supply voltage range: -0.3 to 6 V; (2)VIO IO signal voltage range: 0 to VCC V; (3)Tstg Storage temperature range: -65 to 125 ℃; (4)TA Characterized free-air operating temperature range: -40 to 85 ℃; (5)Lead temperature, 1.6 mm (1/16 in)from case for 10 s): 260 ℃; (6)IEC 61000-4-2 Contact Discharge: ±8 kV; (7)IEC 61000-4-2 Air-Gap Discharge: ±9 kV; (8)Peak pulse power (tp = 8/20 ms): 25 W; (9)Peak pulse current (tp = 8/20 ms): 2.5 A.

Features

TPD4S009DCKR features: (1)Supports High-Speed Differential Data Rates (3-dB Bandwidth > 4 GHz); (2)0.05-pF Matching Capacitance Between Differential Signal Pairs; (3)Low 0.8-pF Line Capacitance for Each Data Line to GND; (4)Flow-Through Single-in-Line Pin Mapping for High-Speed Lines Ensures No Additional Board Layout Burden While Placing ESD Protection Chip Near Connector; (5)IEC 61000-4-2 (Level 4)System-Level ESD Compliance; (6)2.5-A Peak Pulse Current (8/20-ms Pulse); (7)Ioff Feature; (8)Industrial Temperature Range: –40℃ to 85℃; (9)Space-Saving Package Options.

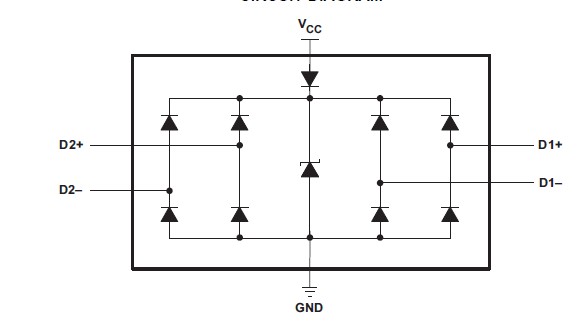

Diagrams
