Product Summary

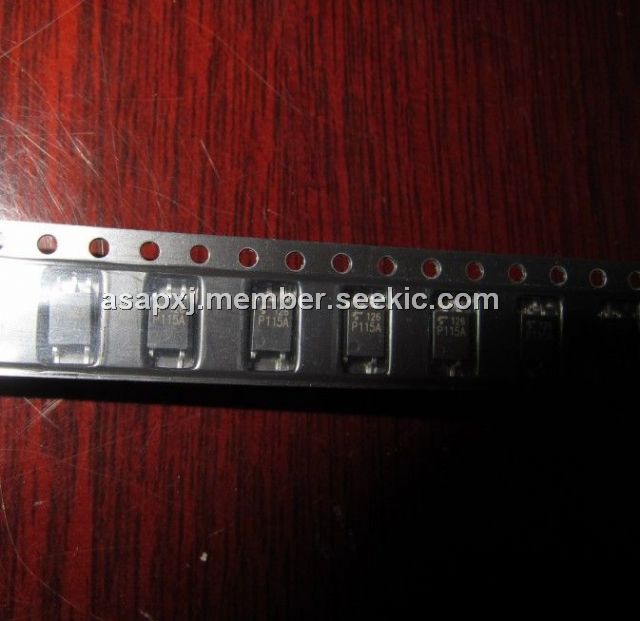

The TLP115A(TPL,F) is high speed, long distance isolated line receiver of microprocessor system interfaces. It is digital isolation for A/D, D/A conversion. The TOSHIBA mini flat coupler the TLP115A(TPL,F) is a small outline coupler, suitable for surface mount assembly. The TLP115A(TPL,F) consists of a high output power GaAAs light emitting diode, optically coupled to an integrated high gain, high speed shielded photo detector whose output is an open collector schottky clamped transistor. The shield, which shunts capacirively coupled common noise to ground, provides a guaranteed transient immunity specification of 1000V/μs.
Parametrics
TLP115A(TPL,F) absolute maximum ratings: (1)Forward current, IF: 20mA; (2)Pulse forward current, IFP: 40mA; (3)Peak transient forward current, IFPT: 1A; (4)Reverse voltage, VR: 5V; (5)Output current, IO: 25mA; (6)Output voltage, VO: 7V; (7)Supply voltage(1 minute maximum), VCC: 7V; (8)Output power dissipation, Po: 40mW; (9)Operating temperature range, Topr: -40 to 85℃; (10)Storage temperature range, Tstg: -55 to 125℃; (11)Lead solder temperature, Tsol: 260℃; (12)Isolation voltage(AC, 1 min., RH≤ 60%), BVS: 2500Vrms.
Features
TLP115A(TPL,F) features: (1)Input current thresholds: IF = 5mA (max.); (2)Switching speed: 10MBd (typ); (3)Common mode transient immunity: ± 1000V/μs (min); (4)Guaranteed performance over temp: 0 to 70℃; (5)Isolation voltage: 2500Vrms (min); (6)UL recognized: UL1577, file no. E67349.
Diagrams
 |
