Product Summary

Parametrics

Manufacturer: Texas Instruments
Type: General Purpose
Hysteresis: -
Operating Temperature: 0°C ~ 70°C
Current - Output (Typ): 20mA
Number of Elements: 4
Current - Quiescent (Max): 100µA
Series: LinCMOS™
Current - Input Bias (Max): 5pA @ 5V
Voltage - Supply, Single/Dual (±): 3 V ~ 16 V
Voltage - Input Offset (Max): 5mV @ 10V
CMRR, PSRR (Typ): 84dB CMRR
Propagation Delay (Max): 4.5µs
Output Type: CMOS, Open-Drain
Mounting Type: Through Hole
Packaging: Tube

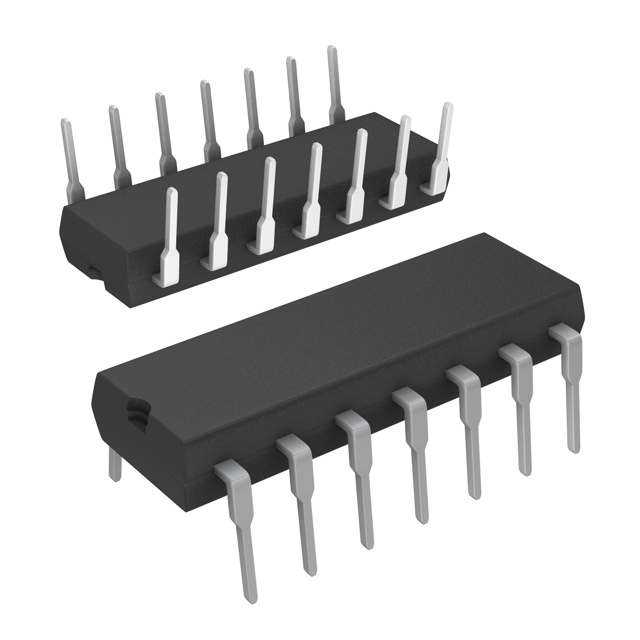

Package / Case: 14-DIP (0.300", 7.62mm)

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLC339CNS
TLC339CNS

Texas Instruments

Comparator ICs Quad Micropower LinCMOS

Data Sheet

0-1: $0.84
1-25: $0.68
25-100: $0.61
100-250: $0.56
TLC339CNSG4
TLC339CNSG4

Texas Instruments

Comparator ICs Quad Micropower LinCMOS

Data Sheet

Negotiable
TLC339CNSRG4
TLC339CNSRG4

Texas Instruments

Comparator ICs Quad Micropower LinCMOS Comparator

Data Sheet

0-1380: $0.34
1380-2000: $0.32
2000-5000: $0.30
5000-10000: $0.29
TLC339CNSR
TLC339CNSR

Texas Instruments

Comparator ICs Quad Micropower LinCMOS Comparator

Data Sheet

0-1380: $0.34
1380-2000: $0.32
2000-5000: $0.30
5000-10000: $0.29
TLC339CNE4
TLC339CNE4

Texas Instruments

Comparator ICs Quad Micropower LinCMOS Comparator

Data Sheet

0-1: $0.74
1-25: $0.59
25-100: $0.51
100-250: $0.48
TLC339CN
TLC339CN

Texas Instruments

Comparator ICs Quad Differential

Data Sheet

0-1: $0.83
1-25: $0.66
25-100: $0.51
100-250: $0.51
