Product Summary

Parametrics

Series: -
Manufacturer: Texas Instruments
Type: Simple Reset/Power-On Reset
Number of Voltages Monitored: 1
Output: Complementary
Reset: Active High/Active Low
Reset Timeout: 1 µs Maximum Propagation Delay
Operating Temperature: 0°C ~ 70°C
Mounting Type: Surface Mount

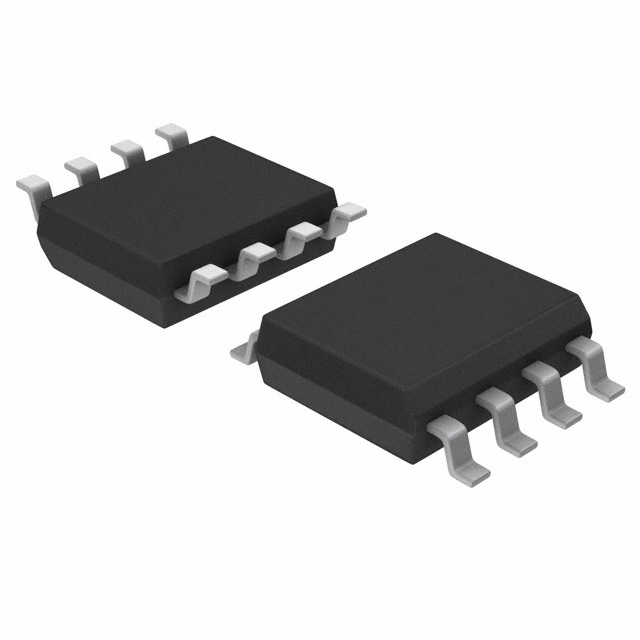

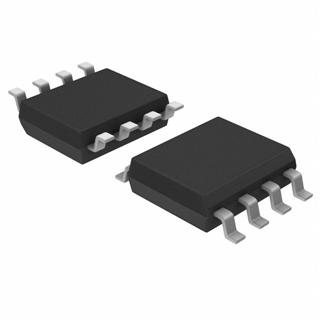

Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Packaging: Cut Tape (CT)Alternate Packaging
Voltage - Threshold: 2.53V

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL7702ACDR
TL7702ACDR
Texas Instruments
Supervisory Circuits 2.53V Monitor
Data Sheet
0-1: $0.37
1-25: $0.29
25-100: $0.25
100-250: $0.22
TL7702ACDRE4
TL7702ACDRE4
Texas Instruments
Supervisory Circuits Sngl SVS W/Prg UV Th & Reset Time Delay
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.22
100-250: $0.19
TL7702ACDRG4
TL7702ACDRG4
Texas Instruments
Supervisory Circuits Sngl SVS W/Prg UV Th & Reset Time Delay
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.22
100-250: $0.19
