Product Summary

The TL064CDR is a low power FET-input operational amplifier. It features high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents. The TL064CDR incorporates well-matched, high-voltage JFET and bipolar transistors in an integrated circuit.

Parametrics

TL064CDR absolute maxing ratings: (1)Supply voltage, VCC+: 18V; (2)Supply voltage, VCC-: -18V; (3)Differential input voltage, VID: ±30V; (4)Input voltage, VI: ±15V; (5)Operating virtual junction temperature, TJ: 150℃; (6)Lead temperature 1,6 mm (1/6 inch) from case for 10 seconds D, N, NS, P, PS, or PW package: 260℃; (7)Storage temperature range, Tstg: -65 to 150℃.

Features

TL064CDR features: (1)Very Low Power Consumption; (2)Typical Supply Current: 200μA(Per Amplifier); (3)Wide Common-Mode and Differential Voltage Ranges; (4)Low Input Bias and Offset Currents; (5)Common-Mode Input Voltage Range Includes VCC+; (6)Output Short-Circuit Protection; (7)High Input Impedance: JFET-Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 3.5 V/μs Typ.

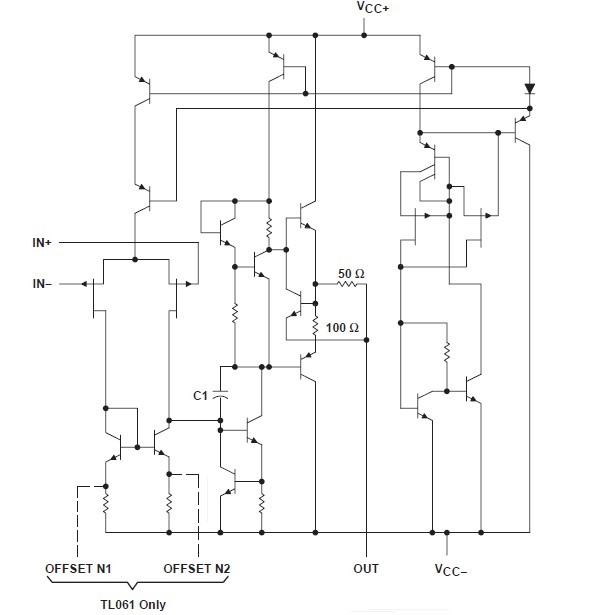

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL064CDR
TL064CDR
Texas Instruments
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input
Data Sheet
0-1: $0.32
1-25: $0.24
25-100: $0.20
100-250: $0.18
TL064CDRE4
TL064CDRE4
Texas Instruments
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input
Data Sheet
0-1: $0.26
1-25: $0.21
25-100: $0.18
100-250: $0.16
TL064CDRG4
TL064CDRG4
Texas Instruments
Operational Amplifiers - Op Amps Quad Lo-Pwr JFET-Inp Gen-Purp Op Amp
Data Sheet
0-1: $0.37
1-25: $0.25
25-100: $0.22
100-250: $0.19
