TDA16888G

High Performance Power Combi Controller, 20DIP, 1 A, 15 kHz to 200 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.08~2.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.08~2.08

PartNumber:: TDA16888G

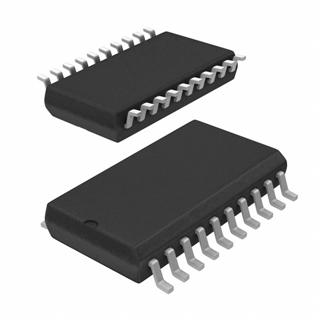

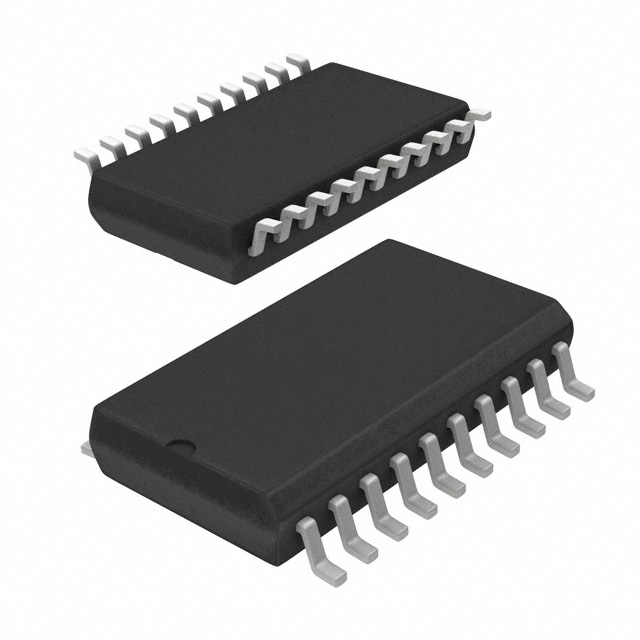

Brand:: eupec GmbH - infineon | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TDA16888G
US $2.08 - 2.08
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

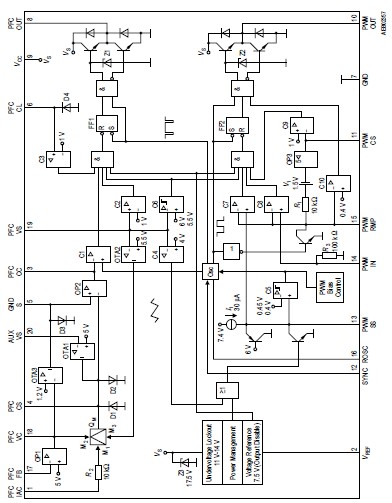

The TDA16888G is a High Performance Power Combi Controller. It comprises the complete control for power factor controlled switched mode power supplies. With its PFC and PWM section being internally synchronized, it applies for off-line converters with input voltages ranging from 90 V to 270 V. The TDA16888 is protected against overvoltages typically above 17.5 V by an internal Zener diode Z3 at pin 9 (VCC) and against electrostatic discharging at any pin by special ESD circuitry. As soon as the supply voltage has stabilized, which is determined by the TDA16888G power management and its soft-start feature at pin 13 (PWM SS), the PWM section will be enabled by means of its internal bias control.

Parametrics

TDA16888G absolute maximum ratings: (1)VCC supply voltage VS: - 0.3 to VZ3 V; (2)Zener current of Z3 IZ3: - 50 mA; (3)VREF voltage VVREF: - 0.3 to 8 V; (4)ROSC voltage VROSC: - 0.3 to 8 V; (5)SYNC voltage VSYNC: - 0.3 to8 V; (6)PFC FB voltage VPFC FB: - 0.3 to 8 V; (7)PFC IAC voltage VPFC IAC: - 0.3 to15 V; (8)AUX VS voltage VAUX VS: - 0.3 to 8 V; (9)PFC VS voltage VPFC VS: - 0.3 to 8 V; (10)PFC CL voltage VPFC CL: - 1 to 3 V; (11)PWM SS voltage VPWM SS: - 0.3 to 8 V; (12)PWM IN voltage VPWM IN: - 0.3 to 8 V; (13)PWM RMP voltage VPWM RMP: - 0.3 to 8 V; (14)PWM CS voltage VPWM CS: - 0.3 to 3 V; (15)PFC VC voltage VPFC VC: - 0.3 to 8 V; (16)PFC VC current IPFC VC: - 20 to 20 mA ; (17)PFC CS current IPFC CS: - 5 to 5 mA ; (18)GND S current IGND S - 5 to 5 mA; (19)PFC CC voltage VPFC CC - 0.3 to 8 V; (20)PFC CC current IPFC CC - 20 to 20 mA; (21)Junction temperature TJ - 40 to 150 ℃.

Features

TDA16888G features: (1)IEC 1000-3 compliant; (2)Additional operation mode as auxiliary power supply; (3)Fast, soft switching totem pole gate drive (1 A); (4)Dual loop control (average current and voltage sensing); (5)Leading edge triggered pulse width modulation; (6)Peak current limitation; (7)Topologies of PFC preconverter are boost or flyback; (8)Continuous/discontinuous mode possible; (9)94% maximum duty cycle.
