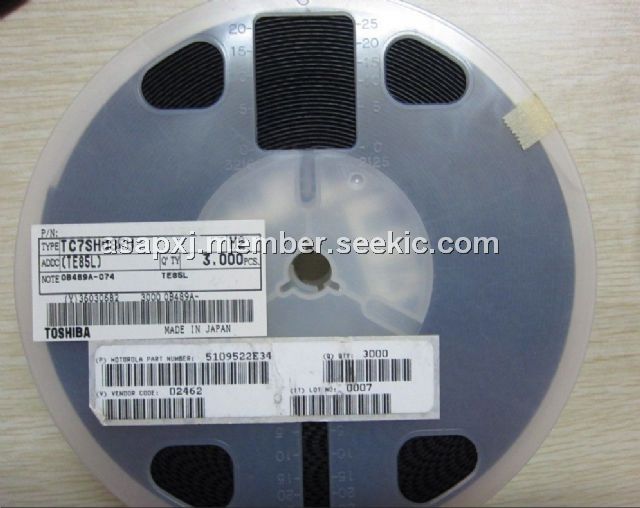

TC7SH08FUTE85L

TC7SH08FUTE85L, 5SSOP, Single 2-Input AND Gate, -0.5 to 7 V, ±25 mA, 200mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.05

PartNumber:: TC7SH08FUTE85L

Brand:: Toshiba Semiconductor - Toshiba | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:TC7SH08FUTE85L
US $0.05 - 0.05
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TC7SH08FUTE85L is a Single 2-Input AND Gate. The TC7SH08FUTE85L achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 4 stages including buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0 to 7V can be applied to the input pins without regard to the supply voltage. The TC7SH08FUTE85L can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.

Parametrics

TC7SH08FUTE85L absolute maximum ratings: (1)Supply voltage VCC: -0.5 to 7 V; (2)DC input voltage VIN: -0.5 to 7 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: -20 mA; (5)Output diode current IOKL: ±20mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±50 mA; (8)Power dissipation PD: 200mW; (9)Storage temperature Tstg: -65℃ to 150℃; (10)Lead temperature (10 s) TL: 260℃.

Features

TC7SH08FUTE85L features: (1)High speed: tpd = 4.3ns (typ.) at VCC = 5V; (2)Low power dissipation : ICC = 2μA(max) at Ta = 25℃; (3)High noise immunity : VNIH = VNIL = 28% VCC (min); (4)power down protection is provided on all inputs; (5)Wide operating voltage range : VCC= 2 to 5.5V; (6)Banlanced Propagation Delays: tpLH ≈ tpHL.
