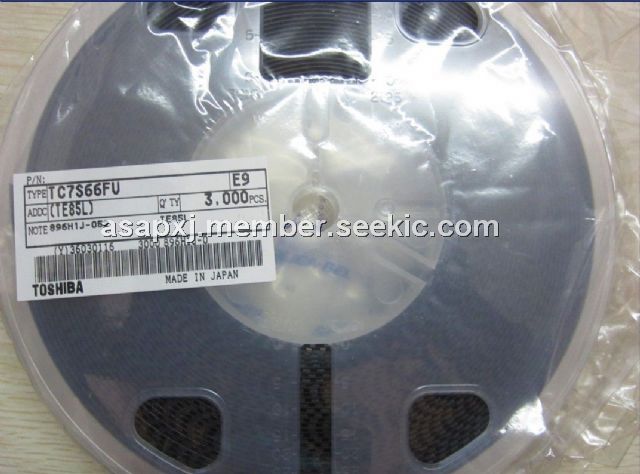

TC7S66FU-TE85L

TC7S66FU-TE85L, 5SSOP, Analog Switch, -0.5 to 13 V, ±20 mA, 200mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.05

PartNumber:: TC7S66FU-TE85L

Brand:: Toshiba Semiconductor - Toshiba | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:TC7S66FU-TE85L
US $0.05 - 0.05
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TC7S66FU-TE85L is a high speed CMOS bilateral switch. It is fabricated with silicon gate CMOS technology. The TC7S66FU-TE85L consists of a high speed switch capable of controlling either digital or analog signals while maintaining the CMOS low power dissipation. Control input is provided to control the switch. The switch turns on while the C input is high, and the switch turns off while low. Input is equipped with protection circuits against static discharge or transient excess voltage.

Parametrics

TC7S66FU-TE85L absolute maximum ratings: (1)DC Supply voltage VCC: -0.5 to 13 V; (2)Control input voltage VIN: -0.5 to VCC+0.5 V; (3Swith I/O voltage: -0.5 to VCC + 0.5 V; (4)output diode current IOKL: ±20 mA; (5)Control diode current ICK: ±20mA; (6)Through I/O Current: ±12.5 mA; (7)DC VCC/ground current ICC: ±25 mA; (8)Power dissipation PD: 200mW; (9)Storage temperature Tstg: -65℃ to 150℃; (10)Lead temperature (10 s) TL: 260℃.

Features

TC7S66FU-TE85L features: (1)High speed: tpd = 7ns (typ.) at VCC = 5V; (2)Low power dissipation : ICC = 1μA(max) at Ta = 25℃; (3)High noise immunity : VNIH = VNIL = 28% VCC (min); (4)Low on resistance: RON=100Ω(Typ.) at VCC=5V; (5)Low T.H.D: YHD =0.05%(Typ.) at VCC=5V; (6)Pin and Function Compatible with TC4S66F.
