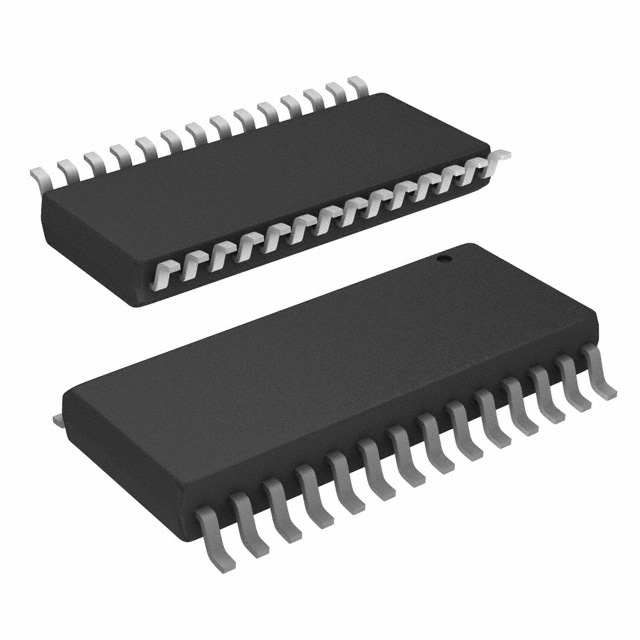

ST3237EBPR

transceiver, 28-SSOP, transceiver, 6 V, 1 mA, 1Mbps, ST3237EBPR

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~2.50

PartNumber:: ST3237EBPR

Brand:: STMicroelectronics - ST | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ST3237EBPR
US $2.50 - 2.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ST3237EBPR is a transceiver. The ST3237EBPR is a 3V to 5.5V powered EIA/ TIA-232 and V.28/V.24 communication interfaces high data-rate capability and enhanced electrostatic discharge (ESD) protection at ±8KV using IEC1000-4-2 contact discharge and ±15kV using Human Body Model (HBM). The other pins are protected with standard ESD protection at ±2kV using HBM method. The ST3237EBPR is a transceiver (5 drivers, 3 receivers) for fast modem applications. The ST3237EBPR has a proprietary low-dropout transmitter output stage providing true RS-232 performance from a 3V to 5.5V supply using a dual charge pump. The device is guaranteed to run at data rates of 250Kbps in the normal operation mode and 1Mbps in the very high speed operation mode while maintaining RS-232 output levels.

Parametrics

ST3237EBPR absolute maximum ratings: (1)VCC Supply Voltage: -0.3 to 6 V; (2)V+ Doubled Voltage Terminal: -0.3 to 7 V; (3)V- Inverted Voltage Terminal: 0.3 to -7 V; (4)TIN Transmitter Input Voltage Range: -0.3 to 6 V, SHDN, EN: -0.3 to 6 V; (5)VHSCI Very High Speed Control Input: -0.3 to (VCC +0.3)V; (6)RIN Receiver Input Voltage Range: ± 25 V; (7)TOUT Transmitter Output Voltage Range: ± 13.2 V; (8)ROUT, ROUTB Receiver Output Voltage Range: -0.3 to (VCC + 0.3)V; (9)Tstg Storage Temperature Range: -65 to 150 ℃; (10)ISUPPLY VCC Power Supply Current SHDN=VCC No Load: 0.3 to 1 mA.

Features

ST3237EBPR features: (1)EDS protection for rs-232 i/o pins: ±15kv human body model, ±8kv iec 1000-4-2 contact discharge; (2)1μA low power shutdown with receivers active; (3)guarenteed data rate 250Kbps (Normal Operation), 1Mbps (Very High Speed Operation); (4)guaranteed slew rate range 6V/μs (Normal Operation), 24V/μs (Very High Speed Operation); (5)0.1μF external capacitors; (6)flow-through pinout; (7)available in SO-28 AND SSOP-28; (8)low supply current 300μA.
