ST1284-02A8RL

Parallel Port Single Termination Network, 1 W, 5.5 V, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.73 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.73~0.73

PartNumber:: ST1284-02A8RL

Brand:: STMicroelectronics - ST | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ST1284-02A8RL
US $0.73 - 0.73
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

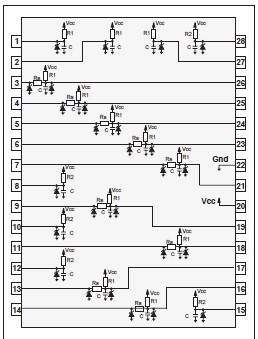

The ST1284-02A8RL is a Parallel Port Single Termination Network for enhanced high speed parallel ports. The ST1284-02A8RL complies to the IEEE1284 Standard recommendations and government EMC compatibility requirements. It is built around two basic cells. The first one (Cell 1) provides line termination, EMI filtering and ESD protection for the Strobe and Datalines while the second one (Cell 2) provides EMI filtering and ESD protection for the Control and Status lines. In addition, the ST1284-02A8RL provides extra protection against ESD. When tested according to IEC61000-4-2, they withstand ±8kV contact discharges and ±15kV air-discharges, thereby providing to the system the necessary robustness to meet up to level 4 of IEC61000-4-2, without the need for additional ESD protection components. Cells 1 and 2 are described in more detail in figures 1 and 2.

Parametrics

ST1284-02A8RL absolute maximum ratings: (1)Vcc Supply voltage: 5.5 V; (2)Pr Power rating per resistor: 100 mW; (3)PP Package Power rating: 1 W; (4)Top Operating temperature range: 0 to +70 ℃; (5)Tstg Storage temperature range: －55 to +150 ℃; (6)Tj Maximum operating junction temperature: 125 ℃.

Features

ST1284-02A8RL features: (1)One device for parallel port termination; (2)Compliant with IEEE1284 standard; (3)EMI / RFI noise filtering; (4)Highly integrated solution in 28 pin QSOP and TSSOP packages; (5)One single device provides the proper termination for 8 datalines, 1 strobe line, 4 control lines and 4 statuts lines; (6)In system ESD protection of ±15 kV (air discharge)as per IEC61000-4-2 level 4.
