Product Summary
The SN75176BDR is a differential bus transceiver. It is an integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27.
Parametrics
SN75176BDR absolute maxing ratings: (1)Supply voltage, VCC: 7V; (2)Voltage range at any bus terminal: -10V to 15V; (3)Enable input voltage, VI: 5.5V; (4)Package thermal impedance, θJA: D package: 97℃/W; P package: 85℃/W; PS package: 95℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN75176BDR features: (1)Bidirectional Transceivers; (2)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27; (3)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (4)3-State Driver and Receiver Outputs; (5)Individual Driver and Receiver Enables; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Thermal Shutdown Protection; (8)Driver Positive and Negative Current Limiting.

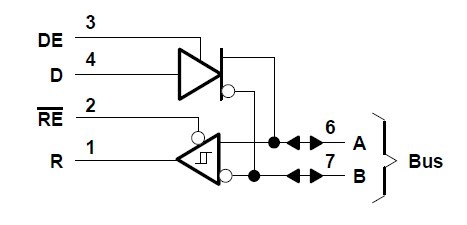

Diagrams
