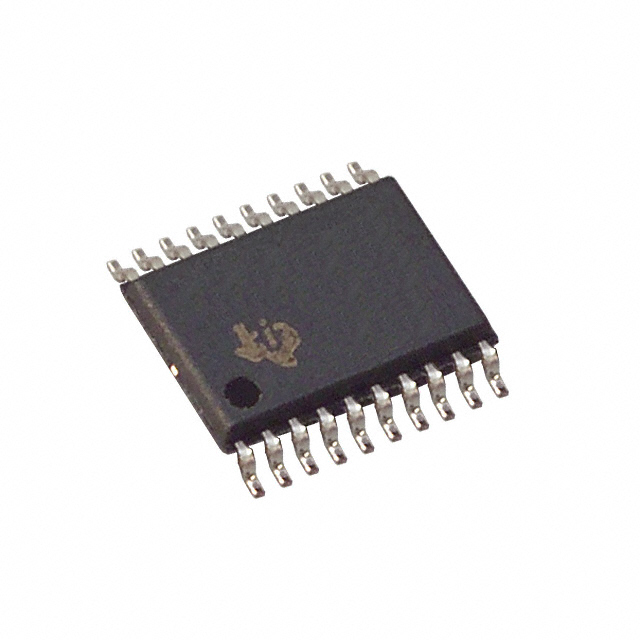

SN74LVCR2245APWR

Product Summary

The SN74LVCR2245APWR octal bus transceiver is designed for 1.65V to 3.6V VCC operation. The device is designed for asynchronous communication between data buses. The SN74LVCR2245APWR transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output enable input can be used to disable the device so the buses are effectively isolated. All outputs, which are designed to sink up to 12 mA, include equivalent 26-r resistors to reduce overshoot and undershoot. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V/5V system environment. The SN74LVCR2245APWR is characterized for operation from -40℃ to 85℃.

Parametrics

SN74LVCR2245APWR absolute Maximum Ratings: (1)Supply voltage range, VCC: -0.5V to 6.5V; (2)Input voltage range, VI: -0.5V to 6.5V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5V to 6.5V; (4)Voltage range applied to any output in the high or low state, VO: -0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): -50 mA ; (6)Output clamp current, IOK (VO < 0): -50mA ; (7)Continuous output current, IO: ±50mA ; (8)Continuous current through VCC or GND: ±100mA ; (9)Package thermal impedance, θJA (see Note 3): 128℃/W; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74LVCR2245APWR features: (1)EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process; (2)All Outputs Have Equivalent 26W Series Resistors, So No External Resistors Are Required; (3)Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃; (4)Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25℃; (5)Power Off Disables Outputs, Permitting Live Insertion; (6)Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC); (7)ESD Protection Exceeds 2000V Per MIL-STD-883, Method 3015; (8)Exceeds 200V Using Machine Model (C = 200 pF, R = 0); (9)Latch-Up Performance Exceeds 250 mA Per JESD 17; (10)Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW)Packagesl.

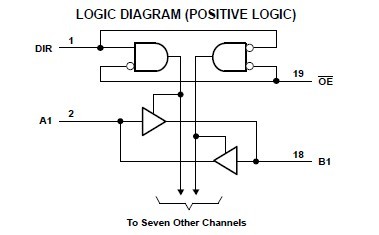

Diagrams
