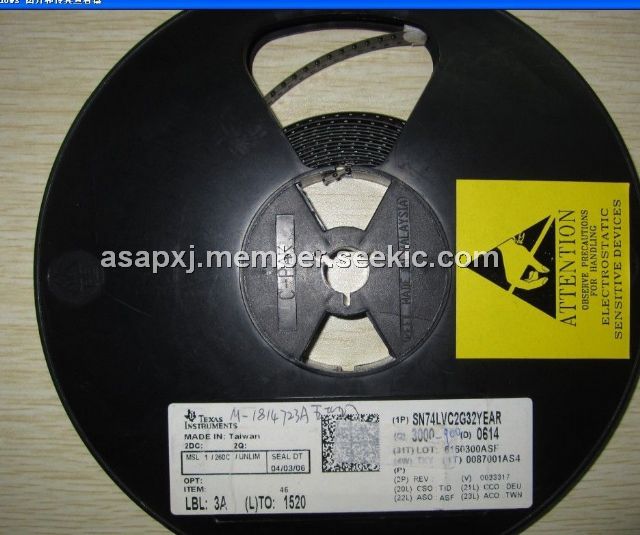

SN74LVC2G32YEAR

TI, DUAL 2 INPUT POSITIVE-OR GATE, BGA, ±50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.19~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.19~0.20

PartNumber:: SN74LVC2G32YEAR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:SN74LVC2G32YEAR
US $0.19 - 0.20
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74LVC2G32YEAR is a dual 2-input positive-OR gate. The SN74LVC2G32YEAR is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G32YEAR performs the Boolean function Y= A+B or Y= A × B in positive logic. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC2G32YEAR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 6.5 V; (2)Input voltage range, VI (see Note 1): 0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO(see Note 1): 0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO (see Notes 1 and 2)：0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI＜0): 50 mA; (6)Output clamp current, IOK (VO＜0): 50 mA; (7)Continuous output current, IO：±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance, θJA (see Note 3): 140℃/W; (10)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN74LVC2G32YEAR features: (1) Available in the Texas Instruments NanoStar and NanoFree. Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 3.8 ns at 3.3 V; (5)Low Power Consumption, 10-μA Max ICC; (6)±24-mA Output Drive at 3.3 V; (7)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (8)Typical VOHV (Output VOH Undershoot) ＞2 V at VCC = 3.3 V, TA = 25℃; (9)Ioff Supports Partial-Power-Down Mode Operation; (10) Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (11) ESD Protection Exceeds JESD 22:2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).
