Product Summary
The SN74LVC00APWR is a quadruple 2-input positive-nand gate. It is designed for 1.65-V to 3.6-V VCC operation. Inputs can be driven from either 3.3-V or 5-V devices. This feature of the SN74LVC00APWR allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.
Parametrics
SN74LVC00APWR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6.5 V; (2)VI Input voltage range: –0.5 to 6.5 V; (3)VO Output voltage range: –0.5 to VCC + 0.5 V; (4)IIK Input clamp current VI < 0: –50 mA; (5)IOK Output clamp current VO < 0: –50 mA; (6)IO Continuous output current: ±50 mA; (7)VCC Continuous current through GND: ±100 mA; (8)Tstg Storage temperature range: –65 to 150 ℃; (9)Ptot Power dissipation TA = –40℃ to 125℃: 500 mW.
Features
SN74LVC00APWR features: (1)Operate From 1.65 V to 3.6 V; (2)Latch-Up Performance Exceeds 250 mA Per JESD 17; (3)Specified From –40℃ to 85℃, –40℃ to 125℃, and –55℃ to 125℃; (4)ESD Protection Exceeds JESD 22; (5)Inputs Accept Voltages to 5.5 V; (6)Max tpd of 4.3 ns at 3.3 V; (7)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (8)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃.

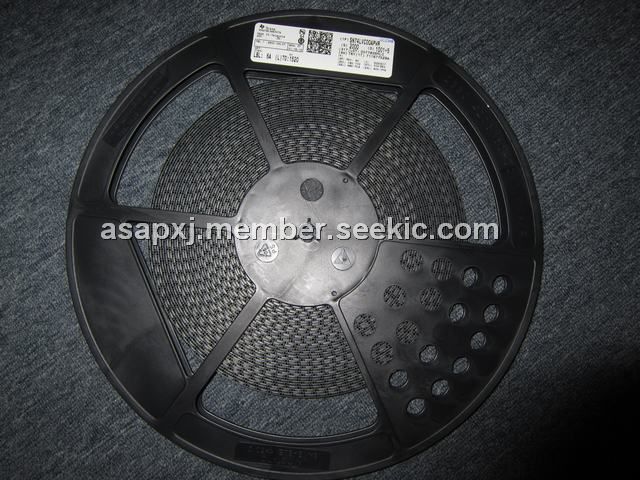

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC00APWR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input |
Data Sheet |
|
|
||||||||||||
|
SN74LVC00APWRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Low-Pwr Sngl 2-Input Positive-NAND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74LVC00APWRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Low-Pwr Sngl 2-Input Positive-NAND Gate |
Data Sheet |
|
|
||||||||||||
