Product Summary
The SN74LV245ARGYR is an octal bus transceiver. The SN74LV245ARGYR is designed for 2-V to 5.5-V VCC operation. The SN74LV245ARGYR is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.
Parametrics
SN74LV245ARGYR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input voltage range, VI: Except I/O ports: 0.5 V to 7 V; (3)I/O ports: 0.5 V to 7 V; (4)Voltage range applied to any output in the high-impedance or power-off state, VO: 0.5 V to 7 V; (5)Output voltage range applied in the high or low state, VO: 0.5 V to VCC + 0.5 V; (6)Input clamp current, IIK (VI＜0): 20 mA; (7)Output clamp current, IOK (VO＜0): 50 mA; (8)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (9)Continuous current through VCC or GND: ±70 mA; (10)Package thermal impedance, θJA : DB package: 70℃/W; DGV package: 92℃/W; DW package: 58℃/W; GQN package: 78℃/W; NS package: 60℃/W; PW package: 83℃/W; RGY package: 37℃/W; (11)Storage temperature range, Tstg: 65℃ to 150℃.
Features
SN74LV245ARGYR features: (1)2-V to 5.5-V VCC Operation; (2)Max tpd of 6.5 ns at 5 V; (3)Typical VOLP (Output Ground Bounce) ＜0.8 V at VCC = 3.3V, TA = 25℃; (4)Typical VOHV (Output VOH Undershoot) ＞2.3 V at VCC = 3.3V, TA = 25℃; (5)Support Mixed-Mode Voltage Operation on All Ports; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17; (8)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).

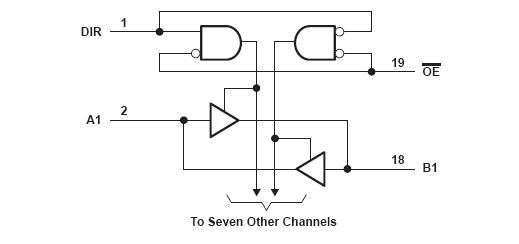

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LV245ARGYR |
Texas Instruments |
Bus Transceivers Tri-State Octal Bus |
Data Sheet |
|
|
||||||||||||
|
SN74LV245ARGYRG4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
