Product Summary

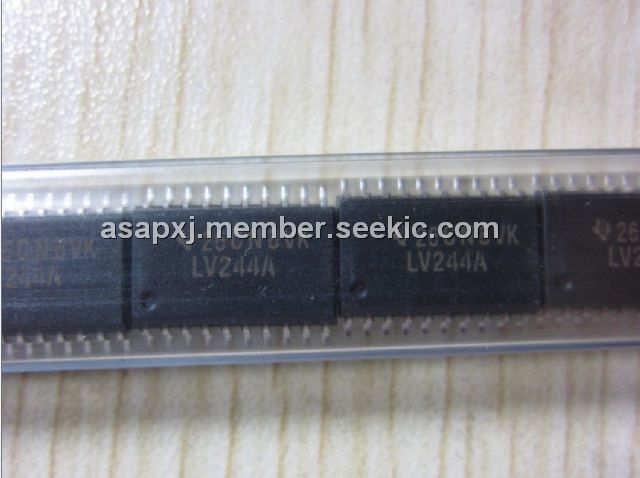

The SN74LV244ADW is an octal buffer/driver with 3-state outputs. The SN74LV244ADW is designed for 2-V to 5.5-V VCC operation. It is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SN74LV244ADW is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
Parametrics
SN74LV244ADW absolute maximum ratings：(1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input voltage range, VI： 0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or; (4)power-off state, VO： 0.5 V to 7 V; (5)Output voltage range applied in the high or low state, VO：0.5 V to VCC + 0.5 V; (6)Input clamp current, IIK (VI ＜ 0)：20 mA; (7)Output clamp current, IOK (VO ＜ 0)：50 mA; (8)Continuous output current, IO (VO = 0 to VCC)：±35 mA; (9)Continuous current through VCC or GND：±70 mA; (10)Package thermal impedance, θJA: DB package：70℃/W; (11)DGV package：92℃/W; (12)DW package：58℃/W; (13)NS package：60℃/W; (14)PW package：83℃/W; (15)RGY package：37℃/W; (16)Storage temperature range, Tstg：65℃ to 150℃.
Features
SN74LV244ADW features: (1)2-V to 5.5-V VCC Operation; (2)Max tpd of 6.5 ns at 5 V; (3)Typical VOLP (Output Ground Bounce)＜0.8 V at VCC = 3.3 V, TA = 25℃; (4)Typical VOHV (Output VOH Undershoot)＞2.3 V at VCC = 3.3 V, TA = 25℃; (5)Support Mixed-Mode Voltage Operation on All Ports; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17; (8)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).

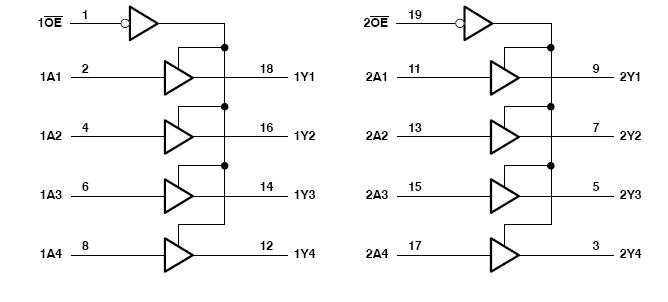

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LV244ADW |
Texas Instruments |
Buffers & Line Drivers Tri-State Octal |
Data Sheet |
|
|
||||||||||||
|
SN74LV244ADWE4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74LV244ADWR |
Texas Instruments |
Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74LV244ADWG4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer Driver |
Data Sheet |
|
|
||||||||||||
|
SN74LV244ADWRG4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer Driver |
Data Sheet |
|
|
||||||||||||
