Product Summary

The SN74LS125ADR is a quadruple bus buffer with 3-state outputs. It features three-state outputs that, when enabled, has the low impedance characteristics of a TTL output with additional drive capability at high logic levels to permit driving heavily loaded bus lines without external pullup resistors. When disabled, the SN74LS125ADR is turned off, presenting a high-impedance state to the bus so the output will act neither as a significant load nor as a driver. The SN74LS125ADR’ outputs are disabled when G is high.

Parametrics

SN74LS125ADR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 5.5 V; (3)Package thermal impedance, θJA (see Note 2):N package: 80℃/W; (4)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN74LS125ADR features: (1)Quad Bus Buffers; (2)3-State Outputs; (3)Separate Control for Each Channel.

Diagrams

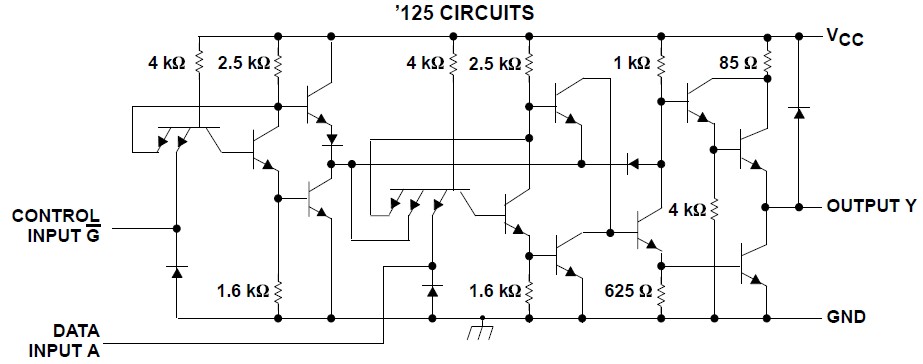

SN74LS125ADR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LS125ADR
SN74LS125ADR

Texas Instruments

Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs

Data Sheet

0-1: $0.41
1-25: $0.37
25-100: $0.32
100-250: $0.28
SN74LS125ADRE4
SN74LS125ADRE4

Texas Instruments

Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs

Data Sheet

0-1: $0.41
1-25: $0.33
25-100: $0.29
100-250: $0.25
SN74LS125ADRG4
SN74LS125ADRG4

Texas Instruments

Buffers & Line Drivers Quad Bus Buffers

Data Sheet

0-1: $0.41
1-25: $0.33
25-100: $0.29
100-250: $0.25
