Product Summary

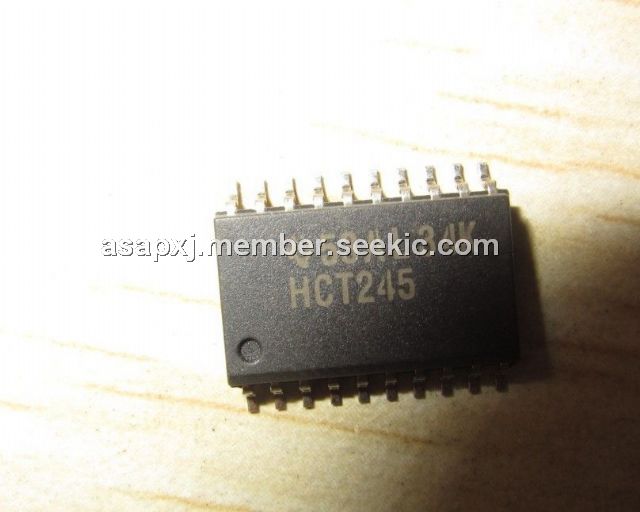

The SN74HCT245DW is an octal bus transceiver. The SN74HCT245DW is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The SN74HCT245DW allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the direction-control (DIR) input.
Parametrics
SN74HCT245DW absolute maximum ratings: (1)Supply voltage range, VCC:-0.5 V to 7 V; (2)Input clamp current, IIK (VI＜0 or VI＞VCC): ±20 mA; (3)Output clamp current, IOK (VO＜0 or VO＞ VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA: DB package: 70℃/W, DW package: 58℃/W, N package: 69℃/W, NS package: 60℃/W, PW package: 83℃/W; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74HCT245DW features: (1) Operating Voltage Range of 4.5 V to 5.5 V; (2) High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads; (3) Low Power Consumption, 80-μA Max ICC; (4) Typical tpd = 14 ns; (5) ±6-mA Output Drive at 5 V; (6) Low Input Current of 1 μA Max; (7) Inputs Are TTL-Voltage Compatible.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HCT245DW |
Texas Instruments |
Bus Transceivers Tri-State Octal Bus |
Data Sheet |
|
|
||||||||||||
|
SN74HCT245DWE4 |
|
IC BUS TRANSCEIVER 8BIT 20SOIC |
Data Sheet |
|
|
||||||||||||
|
SN74HCT245DWR |
Texas Instruments |
Bus Transceivers Tri-State Octal Bus |
Data Sheet |
|
|
||||||||||||
|
SN74HCT245DWRG4 |
Texas Instruments |
Bus Transceivers Octal Bus Transceivers |
Data Sheet |
|
|
||||||||||||
|
SN74HCT245DWRE4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74HCT245DWG4 |
|
IC BUS TRANSCEIVER 8BIT 20SOIC |
Data Sheet |
|
|
||||||||||||
