Product Summary
The SN74HC573ADW is an octal transparent D-type latch. It features 3-state outputs and is designed specifically for driving highly capacitive or relatively low-impedance loads. The SN74HC573ADW is particularly suitable for implementing buffer registers, I/O ports,
bidirectional bus drivers, and working registers. While the latch-enable (LE) input of SN74HC573ADW is high, the Q outputs respond to the data (D) inputs. When LE is low, the outputs are latched to retain the data that was set up.
Parametrics
SN74HC573ADW absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA: DB package: 70℃/W, DW package: 58℃/W, N package: 69℃/W, PW package: 83℃/W; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74HC573ADW features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 21 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Bus-Structured Pinout.

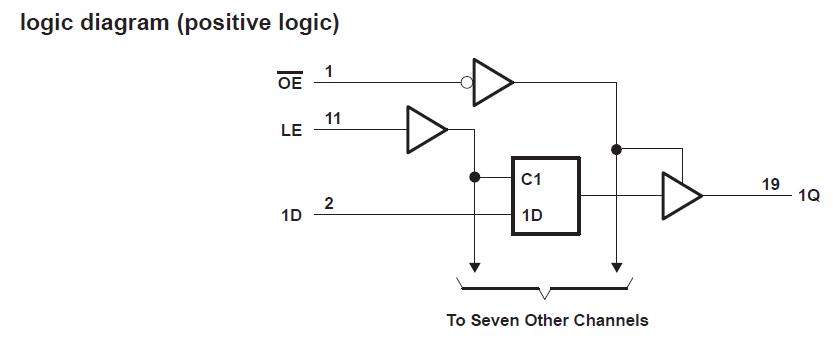

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC573ADW |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC573ADWE4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC573ADWR |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC573ADWG4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC573ADWRG4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC573ADWRE4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
