Product Summary
The SN74HC374NSR is a 8-bit flip-flop which features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The eight flip-flops of the SN74HC374NSR are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels that were set up at the data (D) inputs. An output-enable (OE) input of SN74HC374NSR places the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state.
Parametrics
SN74HC374NSR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND:±70 mA; (6)Package thermal impedance, θJA: DB package: 70℃/W, DW package: 58℃/W, N package: 69℃/W, NS package: 60℃/W, PW package: 83℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74HC374NSR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads; (3)Eight D-Type Flip-Flops in a Single Package; (4)Full Parallel Access for Loading; (5)Low Power Consumption, 80-μA Max ICC; (6)Typical tpd = 14 ns; (7)±6-mA Output Drive at 5 V; (8)Low Input Current of 1 μA Max.

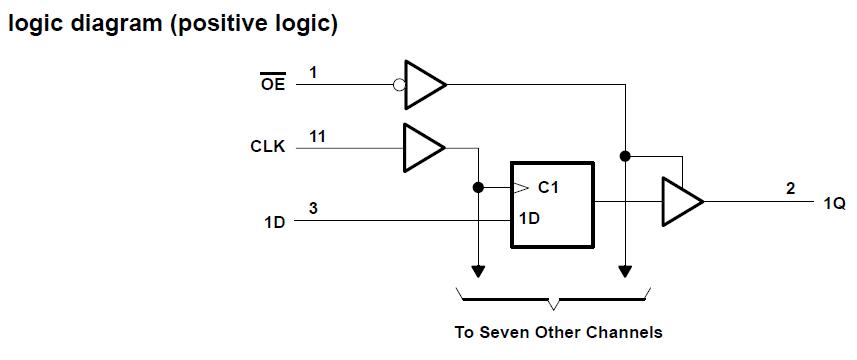

Diagrams
