Product Summary
The SN74HC138PW is a 3-line to 8-line decoder/demultiplexer. The SN74HC138PW is designed to be used in high-performance memory-decoding or datarouting applications requiring very short propagation delay times. In high-performance memory systems, these decoders can be used to minimize the effects of system decoding. When employed with high-speed memories utilizing a fast enable circuit, the delay times of these decoders and the enable time of the memory are usually less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible.
Parametrics
SN74HC138PW absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI ＜ 0 or VI ＞ VCC): ±20 mA; (3)Output clamp current, IOK (VO ＜ 0 or VO ＞ VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 73℃/W; (7)DB package: 82℃/W; (8)N package: 67℃/W; (9)NS package: 64℃/W; (10)PW package: 108℃/W; (11)Storage temperature range, Tstg: 65℃ to 150℃.
Features
SN74HC138PW absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI ＜ 0 or VI ＞ VCC): ±20 mA; (3)Output clamp current, IOK (VO ＜ 0 or VO ＞ VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 73℃/W; (7)DB package: 82℃/W; (8)N package: 67℃/W; (9)NS package: 64℃/W; (10)PW package: 108℃/W; (11)Storage temperature range, Tstg: 65℃ to 150℃.

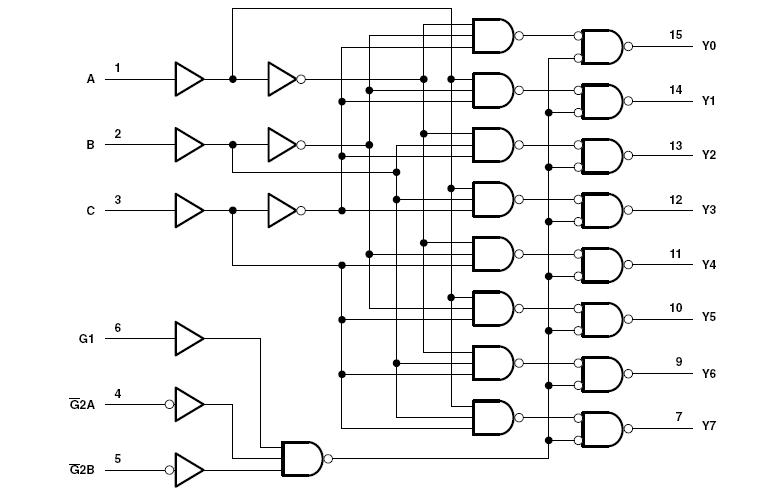

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC138PW |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWG4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWR |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3-to-8 Line Decoder |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWRG4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWRE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWT |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
|
SN74HC138PWTE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer |
Data Sheet |
|
|
||||||||||||
