Product Summary

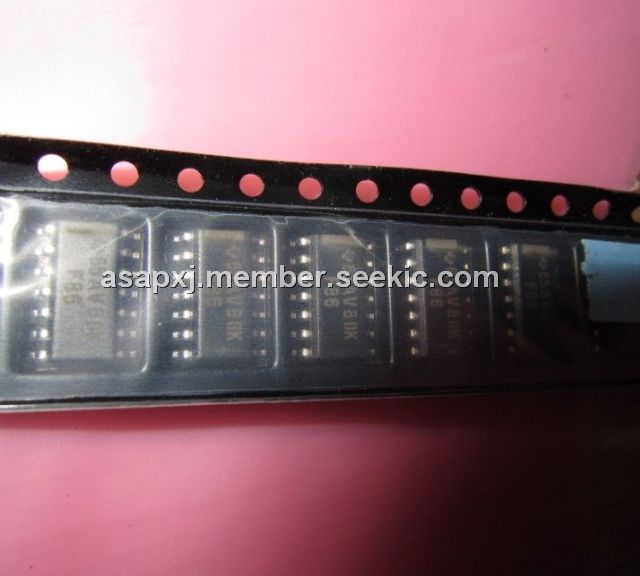

The SN74F86D is a quadruple 2-input exclusive-or gate. It performs the Boolean function Y = A x B or Y = AB + AB in positive logic. A common application of the SN74F86D is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output. The SN74F86D is characterized for operation from 0℃ to 70℃.
Parametrics
SN74F86D absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –1.2 V to 7 V; (3)Input current range: –30 mA to 5 mA; (4)Voltage range applied to any output in the high state: –0.5 V to VCC; (5)Current into any output in the low state: 40 mA; (6)Package thermal impedance, θJA: D package: 127℃/W, N package: 78℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74F86D features: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

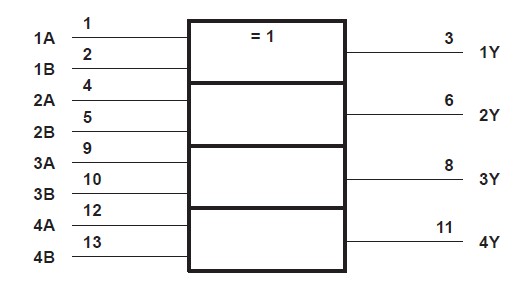

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74F86D |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2 Input |
Data Sheet |
|
|
||||||||||||
|
SN74F86DG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Exclusive-OR Gate |
Data Sheet |
|
|
||||||||||||
|
SN74F86DR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Exclusive-OR Gate |
Data Sheet |
|
|
||||||||||||
|
SN74F86DRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Exclusive-OR Gate |
Data Sheet |
|
|
||||||||||||
|
SN74F86DRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Exclusive-OR Gate |
Data Sheet |
|
|
||||||||||||
|
SN74F86DE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Exclusive-OR Gate |
Data Sheet |
|
|
||||||||||||
