Product Summary

The SN74F10DR is a triple 3-input positive-NAND gate. It contains three independent 3-input NAND gates. The SN74F10DR performs the Boolean functions Y=A×B×C or Y=A+B+C in positive logic. The SN74F10DR is characterized for operation over the full military temperature range of 0℃ to 70℃.

Parametrics

SN74F10DR absolute maximum ratings: (1)Supply voltage range, VCC:-0.5V to 7V; (2)Input voltage range, VI: -1.2V to 7V; (3)Input current range: -30mA to 5mA; (4)Voltage range applied to any output in the high state:-0.5V to VCC; (5)Current into any output in the low state: 40mA; (6)Operating free-air temperature range: 0℃ to 70℃; (7)Storage temperature range:-65℃ to 150℃.

Features

SN74F10DR features: Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs.

Diagrams

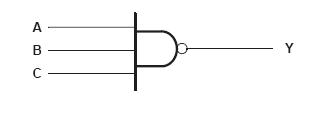

SN74F10DR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74F10DR
SN74F10DR
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3 Input
Data Sheet
0-1: $0.37
1-25: $0.34
25-100: $0.24
100-250: $0.21
SN74F10DRE4
SN74F10DRE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-input Positive-NAND gates
Data Sheet
0-1: $0.31
1-25: $0.25
25-100: $0.21
100-250: $0.19
SN74F10DRG4
SN74F10DRG4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3 input POS NAND gates
Data Sheet
0-1: $0.31
1-25: $0.25
25-100: $0.21
100-250: $0.19
