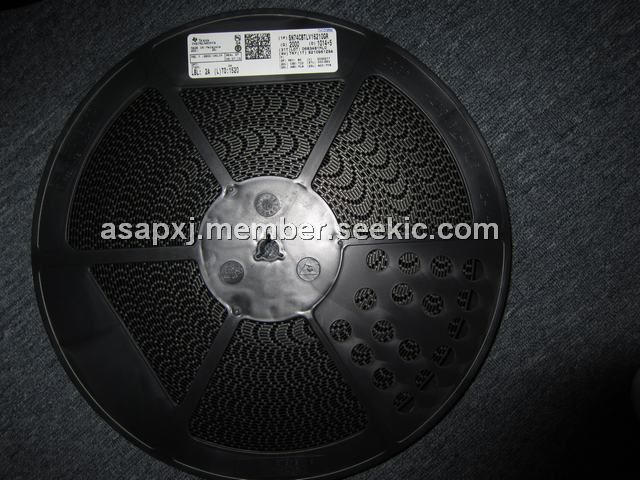

SN74CBTLV16210GR

20-bit FET bus switch, 48-TSSOP, 5-Ω, -0.5 V to 4.6 V, 128 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.63~0.64 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.63~0.64

PartNumber:: SN74CBTLV16210GR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:SN74CBTLV16210GR
US $0.63 - 0.64
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

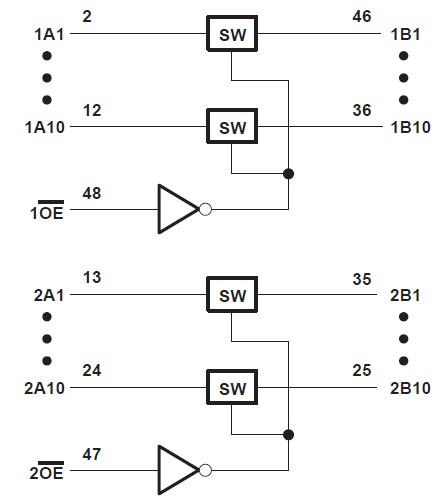

The SN74CBTLV16210GR is a low-voltage 20-bit FET bus switch. It provides 20 bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The SN74CBTLV16210GR is organized as dual 10-bit bus switches with separate output-enable (OE) inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. The SN74CBTLV16210GR is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down.

Parametrics

SN74CBTLV16210GR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4.6 V; (2)Input voltage range, VI: -0.5 V to 4.6 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IIK (VI < 0): -50 mA; (5)Package thermal impedance, θJA: DGV package: 58℃/W, DL package: 63℃/W; (6)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74CBTLV16210GR features: (1)Member of the Texas Instruments Widebus Family; (2)5-Ω Switch Connection Between Two Ports; (3)Rail-to-Rail Switching on Data I/O Ports; (4)Ioff Supports Partial-Power-Down Mode Operation.
