Product Summary
The SN74AS573ADWR is an octal D-type transparent latch with 3-state outputs. The SN74AS573ADWR features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The SN74AS573ADWR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Parametrics
SN74AS573ADWR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Voltage applied to a disabled 3-state output: 5.5 V; (4)Operating free-air temperature range, TA: 0℃ to 70℃; (5)Storage temperature range: –65℃ to 150℃.
Features
SN74AS573ADWR features: (1)3-State Buffer-Type Outputs Drive Bus Lines Directly; (2)Bus-Structured Pinout; (3)True Logic Outputs; (4)Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), Standard Plastic (N) and Ceramic (J) 300-mil DIPs, and Ceramic Flat (W) Packages.

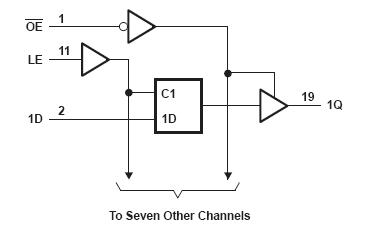

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AS573ADWR |
Texas Instruments |
Latches Octal Dtype Transparent Latch |
Data Sheet |
Negotiable |
|
||||
|
SN74AS573ADWRE4 |
Texas Instruments |
Latches Octal Dtype Transparent Latch |
Data Sheet |
Negotiable |
|
||||
|
SN74AS573ADWRG4 |
Texas Instruments |
Latches Octal Dtype Transparent Latch |
Data Sheet |
Negotiable |
|
||||
