Product Summary
Parametrics
Manufacturer: Texas Instruments
Number of Circuits: 1
Features: -
Logic Type: NAND Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Inputs: 8
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C

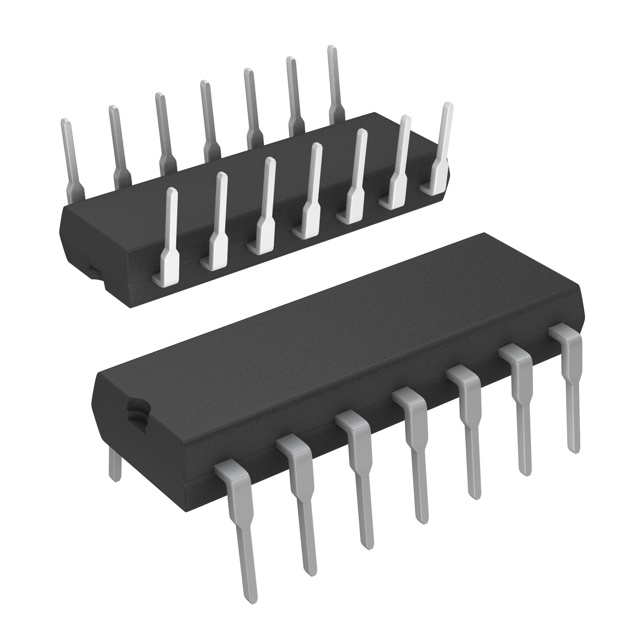

Mounting Type: Through Hole
Supplier Device Package: 14-PDIP
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Series: 74AS
Current - Output High, Low: 2mA, 20mA
Max Propagation Delay @ V, Max CL: 5ns @ 4.5V ~ 5.5V, 50pF
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AS30NSRG4 |
|
IC GATE POS-NAND 8INPUT 14-SOP |
Data Sheet |
|
|
||||||||||||
|
SN74AS30NSRE4 |
|
IC GATE POS-NAND 8INPUT 14-SOP |
Data Sheet |
|
|
||||||||||||
|
SN74AS30NSR |
|
IC GATE POS-NAND 8INPUT 14-SOP |
Data Sheet |
|
|
||||||||||||
 |
SN74AS30N |
Texas Instruments |
Gates (AND / NAND / OR / NOR) 8-Input Positive NAND gates |
Data Sheet |
|
|
||||||||||||
|
SN74AS30NE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) 8-Input Positive NAND gates |
Data Sheet |
|
|
||||||||||||
