Product Summary

The SN74AS11D contains three independent 3-input positive-AND gates. They perform the Boolean functions Y = A *B *C or Y = A + B + C in positive logic. The SN54ALS11A and SN54AS11 are characterized for operation over the full military temperature range of -55℃ to 125℃. The SN74ALS11A and SN74AS11D are characterized for operation from 0℃ to 70℃.

Parametrics

SN74AS11D absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Operating free-air temperature range, TA: 0℃ to 70℃; (4)Storage temperature range: –65℃ to 150℃.

Features

SN74AS11D features: (1)VCC Supply voltage: 4.5 to 5.5 V; (2)VIH High-level input voltage: 2 V; (3)VIL Low level input voltage: 0.8 V; (4)IOH High-level output current: -0.4 to 0.4 mA; (5)IOL Low-level output current: 8 mA; (6)TA Operating free-air temperature: 0 to 70℃.

Diagrams

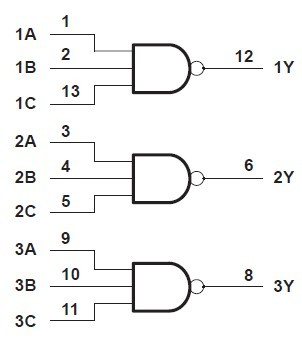

SN74AS11D logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

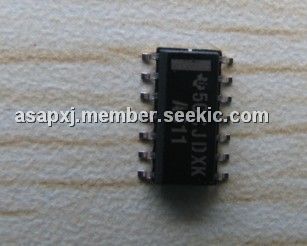

SN74AS11D
SN74AS11D
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-AND Gate
Data Sheet
0-1: $1.43
1-25: $1.15
25-100: $1.04
100-250: $0.94
SN74AS11DE4
SN74AS11DE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-AND Gate
Data Sheet
0-1: $1.43
1-25: $1.15
25-100: $1.04
100-250: $0.94
SN74AS11DG4
SN74AS11DG4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3 Input Positive AND Gates
Data Sheet
0-1: $1.43
1-25: $1.15
25-100: $1.04
100-250: $0.94
SN74AS11DR
SN74AS11DR
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-AND Gate
Data Sheet
0-1790: $0.59
1790-2000: $0.56
2000-2500: $0.56
2500-5000: $0.54
SN74AS11DRE4
SN74AS11DRE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-AND Gate
Data Sheet
0-1790: $0.59
1790-2000: $0.56
2000-2500: $0.56
2500-5000: $0.54
SN74AS11DRG4
SN74AS11DRG4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3 Input Positive AND Gates
Data Sheet
0-1790: $0.59
1790-2000: $0.56
2000-2500: $0.56
2500-5000: $0.54
