Product Summary

The SN74AS00DR is a quadruple 2-input positive-nand gate. It performs the Boolean functions Y = A·B or Y = A + B in positive logic. The SN74AS00DR is characterized for operation from 0℃ to 70℃.

Parametrics

SN74AS00DR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Operating free-air temperature range, TA: 0℃ to 70℃; (4)Storage temperature range: –65℃ to 150℃.

Features

SN74AS00DR features: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

Diagrams

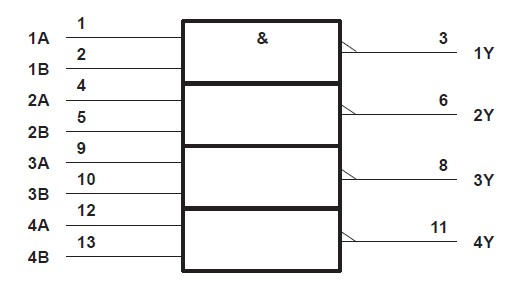

SN74AS00DR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74AS00DR
SN74AS00DR
Texas Instruments
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-NAND gates
Data Sheet
0-1: $0.58
1-25: $0.47
25-100: $0.43
100-250: $0.38
SN74AS00DRE4
SN74AS00DRE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-NAND gates
Data Sheet
0-1750: $0.27
1750-2000: $0.26
2000-2500: $0.26
2500-5000: $0.25
SN74AS00DRG4
SN74AS00DRG4
Texas Instruments
Gates (AND / NAND / OR / NOR) QUAD 2 Input Positive NAND Gate
Data Sheet
0-1750: $0.27
1750-2000: $0.26
2000-2500: $0.26
2500-5000: $0.25
