Product Summary
The SN74ALS374AN octal D-type edge-triggered flip-flop features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The SN74ALS374AN is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels set up at the data (D) inputs. The SN74ALS374AN is characterized for operation from 0℃ to 70℃.
Parametrics
SN74ALS374AN absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to 7 V; (3)Voltage applied to a disabled 3-state output: –0.5 V to 5.5 V; (4)Package thermal impedance, qJA (see Note 1): DW package: 58℃/W; (5)N package: 69℃/W; (6)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74ALS374AN features: (1)D-Type Flip-Flops in a Single Package With 3-State Bus Driving True Outputs; (2)Full Parallel Access for Loading; (3)Buffered Control Inputs; (4)Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs.

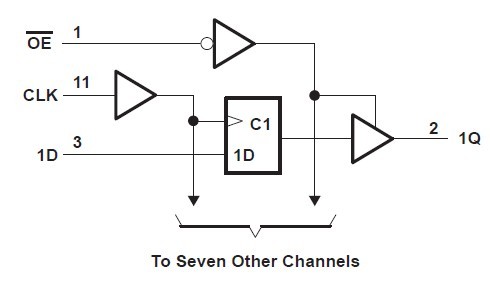

Diagrams
