Product Summary

Parametrics

Manufacturer: Texas Instruments
Features: -
Logic Type: AND Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Inputs: 3
Number of Circuits: 3
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Current - Output High, Low: 400µA, 8mA
Series: 74ALS
Mounting Type: Through Hole

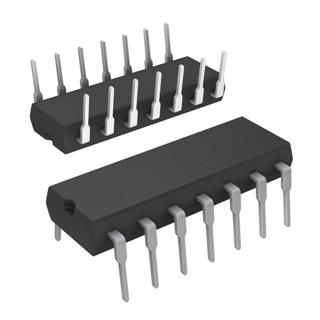

Supplier Device Package: 14-PDIP
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Max Propagation Delay @ V, Max CL: 13ns @ 4.5V ~ 5.5V, 50pF

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74ALS11AN
SN74ALS11AN
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND Gate
Data Sheet
0-1: $0.53
1-25: $0.48
25-100: $0.42
100-250: $0.37
SN74ALS11ANSR
SN74ALS11ANSR

IC GATE AND TRIPLE 3INP 14SOP
Data Sheet
0-1: $0.62
1-10: $0.55
10-25: $0.50
25-100: $0.44
100-250: $0.38
250-500: $0.34
500-1000: $0.27
SN74ALS11ANSRE4
SN74ALS11ANSRE4

IC GATE AND TRIPLE 3INPUT 14-SOP
Data Sheet
0-2000: $0.24
SN74ALS11ANSRG4
SN74ALS11ANSRG4

IC GATE AND TRIPLE 3INPUT 14-SOP
Data Sheet
0-2000: $0.24
SN74ALS11ANE4
SN74ALS11ANE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND Gate
Data Sheet
0-1: $0.53
1-25: $0.43
25-100: $0.39
100-250: $0.35
