Product Summary

The SN74ALS1004D is a hex inverting driver. It contains six independent inverting drivers. The device performs the Boolean function Y = A. The SN74ALS1004D is characterized for operation from 0℃ to 70℃.

Parametrics

SN74ALS1004D absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Operating free-air temperature range, TA: 0℃ to 70℃; (4)Storage temperature range: –65℃ to 150℃.

Features

SN74ALS1004D features: (1)Driver Version of ALS04B and AS04; (2)Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

Diagrams

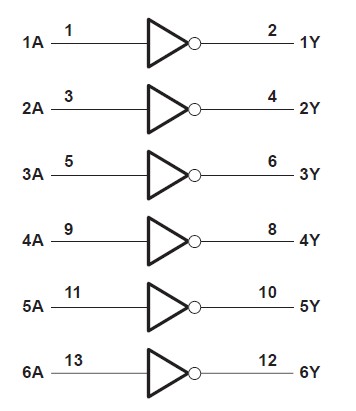

SN74ALS1004D diagram
