Product Summary
The SN74ALS09DR is a quadruple 2-input positive-and gate with open-collector outputs. The SN74ALS09DR contains four independent 2-input positive-AND gates. It performs the Boolean functions Y = A×B or Y = A+B in positive logic. The open-collector outputs require pullup resistors to perform correctly. The SN74ALS09DR may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels.
Parametrics
SN74ALS09DR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Off-state output voltage: 7 V; (4)Operating free-air temperature range, TA: 0℃ to 70℃; (5)Storage temperature range: -65℃ to 150℃.
Features
SN74ALS09DR feature: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

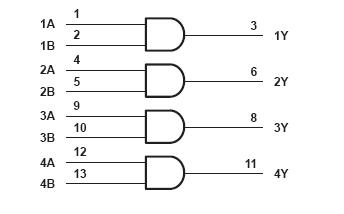

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74ALS09DRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Pos-AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74ALS09DRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) QUAD 2 Inpt Pos AND Gates |
Data Sheet |
|
|
||||||||||||
|
SN74ALS09DR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Pos-AND Gate |
Data Sheet |
|
|
||||||||||||
