Product Summary
The SN74AHC157DR is a quadruple 2-line to 1-line data selector/multiplexer. The SN74AHC157DR is designed for 2-V to 5.5-V VCC operation. The SN74AHC157DR features a common strobe (G) input. When the strobe is high, all outputs are low. When the strobe is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The devices provide true data.
Parametrics
SN74AHC157DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5V to 7V; (2)Input voltage range, VI : –0.5V to 7V; (3)Output voltage range, VO: –0.5V to VCC + 0.5V; (4)Input clamp current, IIK (VI＜0):–20 mA; (5)Output clamp current, IOK (VO＜0 or VO＞VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA: D package: 73℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74AHC157DR features: (1)Operating Range 2-V to 5.5-V VCC; (2)Latch-Up Performance Exceeds 250 mA Per JESD 17; (3)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).

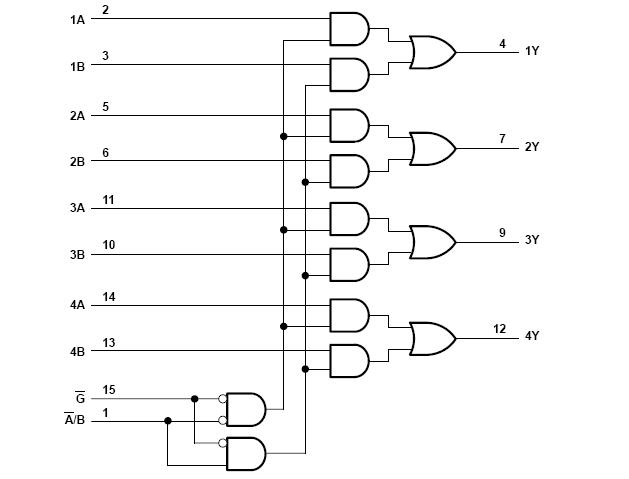

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AHC157DR |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Quad Data |
Data Sheet |
|
|
||||||||||||
|
SN74AHC157DRE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Quad 2-1-Line Data Selector/Mltplxr |
Data Sheet |
|
|
||||||||||||
|
SN74AHC157DRG4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Quad 2-1-Line Data Selector/Mltplxr |
Data Sheet |
|
|
||||||||||||
