Product Summary
The SN65C3221DBR is a 3-V to 5.5-V single-channel RS-232 compatible line driver/receiver. It consists of one line driver, one line receiver, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The SN65C3221DBR provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The SN65C3221DBR operats at data signaling rates up to 1 Mbit/s and a driver output slew rate of 24 V/μs to 150 V/μs. It is used in Battery-Powered, Hand-Held, and Portable Equipment, PDAs and Palmtop PCs, Notebooks, Sub-Notebooks, and Laptops, Digital Cameras, Mobile Phones and Wireless Devices.
Parametrics
SN65C3221DBR absolute maximum ratings: (1)Supply voltage range, VCC: -0.3 V to 6 V; (2)Positive output supply voltage range, V+: -0.3 V to 7 V; (3)Negative output supply voltage range, V-: -0.3 V to .7 V; (4)Supply voltage difference, V+ - V-: 13 V; (5)Input voltage range, VI: Driver (FORCEOFF, FORCEON, EN): -0.3 V to 6 V, Receiver: -25 V to 25 V; (6)Output voltage range, VO: Driver: -13.2 V to 13.2 V, Receiver (INVALID): -0.3 V to VCC + 0.3 V; (7)Package thermal impedance, θJA: DB package: 82℃/W, PW package: 108℃/W; (8)Operating virtual junction temperature, TJ: 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN65C3221DBR features: (1)Operate With 3-V to 5.5-V VCC Supply; (2)Operate Up To 1 Mbit/s; (3)Low Standby Current: 1 μA Typ; (4)External Capacitors: 4 × 0.1 μF; (5)Accepts 5-V Logic Input With 3.3-V Supply; (6)RS-232 Bus-Pin ESD Protection Exceeds; (7)±15 kV Using Human-Body Model (HBM); (8)Auto-Powerdown Feature Automatically Disables Drivers for Power Savings.

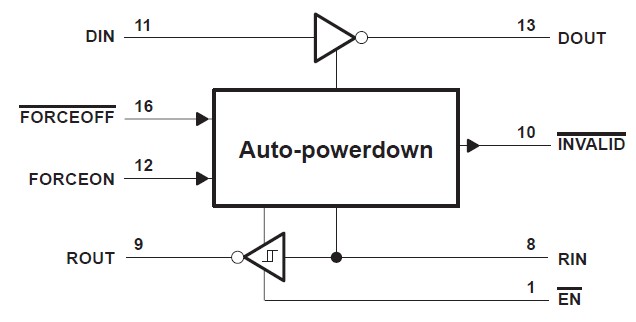

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65C3221DBR |
Texas Instruments |
Buffers & Line Drivers RS232 Sgl Chl |
Data Sheet |
|
|
||||||||||||
|
SN65C3221DBRE4 |
Texas Instruments |
RS-232 Interface IC 3-5.5V Multichannel Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
|
SN65C3221DBRG4 |
Texas Instruments |
RS-232 Interface IC 3V To 5.5V MultiCh RS-232 |
Data Sheet |
|
|
||||||||||||
