Product Summary
The SN54LS173AJ is a 4-bit register include D-type flip-flop featuring totem-pole 3-state outputs capable of driving highly capacitive or relatively low-impedance loads. The high-impedance third state and increased high-logic-level drive provide the SN54LS173AJ with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components. To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the output control circuitry is designed so that the average output disable times are shorter than the average output enable times.
Parametrics
SN54LS173AJ absolute maximum ratings: (1)Supply voltage, VCC: -0.5 V to 7 V; (2)Input voltage: -0.5 V to 7 V; (3)Off-state output voltage: -0.5 V to 5.5 V; (4)Package thermal impedance, θJA: D package: 113℃/W; N package: 78℃/W; (5)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN54LS173AJ features: (1)3-State Outputs Interface Directly With System Bus; (2)Gated Output-Control LInes for Enabling or Disabling the Outputs; (3)Fully Independent Clock Virtually Eliminates Restrictions for Operating in One of Two Modes: Parallel Load; Do Nothing (Hold); (4)For Application as Bus Buffer Registers; (5)Package Options Include Plastic Small-Outline (D) Packages, Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs.

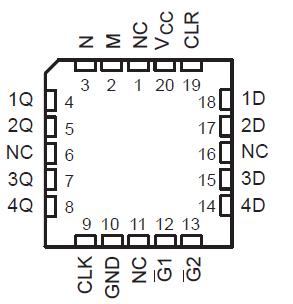

Diagrams
 |
