Product Summary
The SN54LS05J is a hex inverter with open-collector outputs. The SN54LS05J contains six independent inverters. To perform correctly, the open-collector outputs require pull up resistors. The device may be connected to other open-collector outputs to implement active-low wired-OR or active-high wire-AND functions. Open-collector devices often are used to generate high VOH levels.
Parametrics
SN54LS05J absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Off-state output voltage, VO: 7 V; (4)Package thermal impedance, θJA: D package: 86℃/W; DB package: 96℃/W; N package: 80℃/W; NS package: 76℃/W; (5)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN54LS05J features: (1)Package Options Include Plastic Small-Outline (D, NS), Shrink Small-Outline (DB), and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs; (2)Dependable Texas Instrument Quality and Reliability.

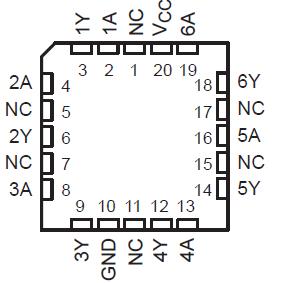

Diagrams
 |
