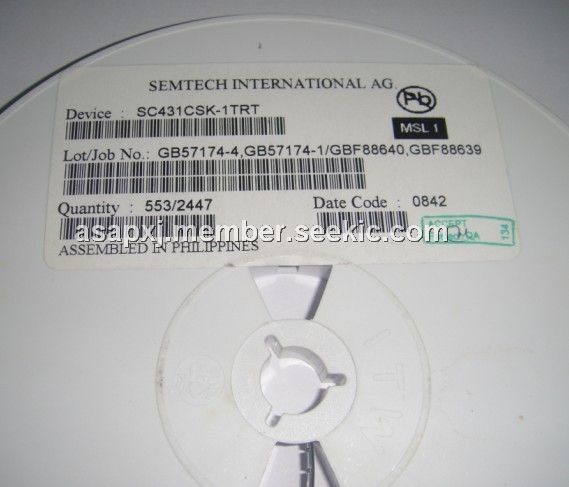

SC431CSK-1TRT

three terminal adjustable shunt regulator, SOT, 31V, 0.37W, 10mA, Lead-free

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: SC431CSK-1TRT

Brand:: Semtech Corporation - Semtech | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:SC431CSK-1TRT
US $0.00 - 5.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SC431CSK-1TRT is a three terminal adjustable shunt regulator with thermal stability guaranteed over temperature. The output voltage can be adjusted to any value from 2.5V (VREF) to 30V with two external resistors. The SC431CSK-1TRT has a typical dynamic output impedance of 0.25Ω. Active output circuitry provides a very sharp turn on characteristic, making the SC431CSK-1TRT an excellent replacement for zener diodes. The applications of the device include Linear Regulators, Adjustable Supplies, Switching Power Supplies, Battery Operated Computers, Instrumentation, Computer Disk Drives.

Parametrics

SC431CSK-1TRT absolute maximum ratings: (1)cathode voltage, VZ: 31V; (2)continuous cathode current, IZ: 150mA; (3)reference input current, IREF: 10mA; (4)power dissipation at TA=25℃, PD: 0.37W; (5)thermal resistance, θJA: 336℃/W; (6)operating junction temperature range, Tj: -40 to 150℃; (7)storage temperature range, Tstg: -65 to 150℃; (8)lead temperature, Tlead: 300℃; (9)ESD rating, VESD: 2kV.

Features

SC431CSK-1TRT features: (1)Wide operating current range 130μA to 150mA; (2)Low dynamic output impedance 0.25Ω typ; (3)Trimmed bandgap design + 0.5%; (4)Alternate for TL1431, TL431, LM431 & AS431; (5)Industrial temperature range; (6)Available in SOT-23-3 and SO-8 packages. Also available in Lead-free, fully WEEE and RoHS compliant.
