Product Summary
The SBK201209T-221 is a SMD inductor. It is suitable for Prevention of high frequency EMI form computers, printers, VCRs, TVs, wireless telephone and other related equipment.
Parametrics
SBK201209T-221 absolute maximum ratings: (1)Impedance Ω(at 100MHz): 220; (2)Tolerance(±%): 25; (3)Test Frequency: 100 MHZ,2 00 mV; (4)RDC(Ω)Max: 0.3; (5)Rated Current(mA)Max: 300; (6)Operating Temperature: -55 to 125℃ (Including self - temperature rise).
Features
SBK201209T-221 features: (1)Unlike conventional beads, these beads do not require wiring: Simply mounts them onto the PCB to eliminate the EMI/RFI; (2)Specially designed for surface mounting equipment, available in various size which allows them to wide rang of application and usage; (3)Best designed and tested to offer high impedance for volume.

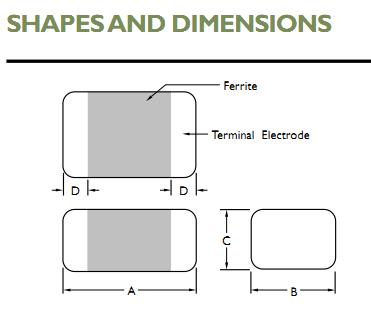

Diagrams
 |
 SBK201209T-102Y-S |
Yageo |
EMI/RFI Suppressors & Ferrites |
Data Sheet |
Negotiable |
|
||||
|
SBK201209T-800Y-S |
Yageo |
EMI/RFI Suppressors & Ferrites |
Data Sheet |
Negotiable |
|
||||
