Product Summary

The RFUS20NS4STL is a Super Fast Recovery Diode. It is ultra high-speed, low VF, and suited for significant efficiency increase of switching power supply as well as reduction of switching loss.

Parametrics

RFUS20NS4STL absolute maximum ratings: (1)Repetitive peak reverse voltage VRM(V): 430; (2)Reverse voltage(DC) VR(V): 430; (3)Average rectified forward current IO(A): 20; (4)Forward current surge peak IFSM(A): 100; (5)Junction temperature Tj(℃): 150; (6)Storage temperature Tstg(℃): -55 to +150.

Features

RFUS20NS4STL features: (1)EPower mold type; (2)EUltra-low Reverse recovery energy.

Diagrams

RFUS20NS4STL diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

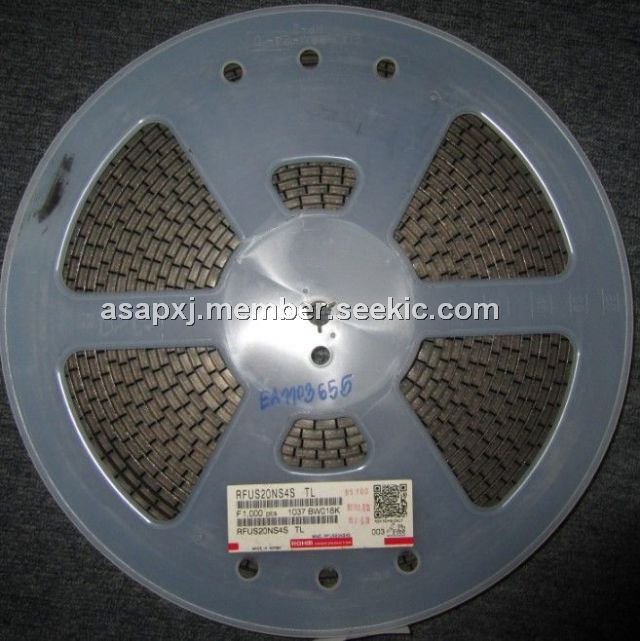

RFUS20NS4STL
RFUS20NS4STL

DIODE FAST REC 430V 20.0A D2PAK
Data Sheet
0-1: $1.83
1-25: $1.41
25-100: $1.28
100-250: $1.15
250-500: $0.99
500-1000: $0.84
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RFUS10TF4S
RFUS10TF4S

DIODE FST REC 430V 10A TO220NFM3
Data Sheet
0-1: $0.84
1-10: $0.74
10-100: $0.59
100-250: $0.52
250-500: $0.46
500-1000: $0.36
1000-2500: $0.34
2500-5000: $0.32
5000-10000: $0.31
RFUS1918BK1
RFUS1918BK1
Hammond Manufacturing

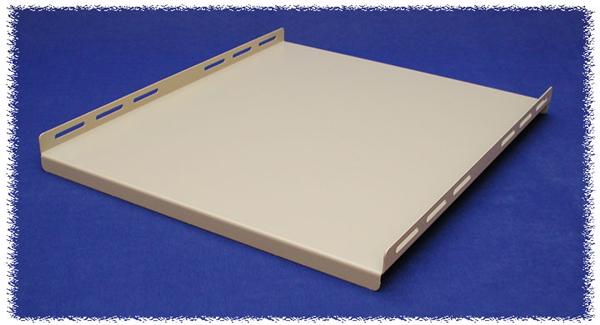

Racks & Rack Cabinet Accessories 18 x 19 SOLID SHELF
