Product Summary

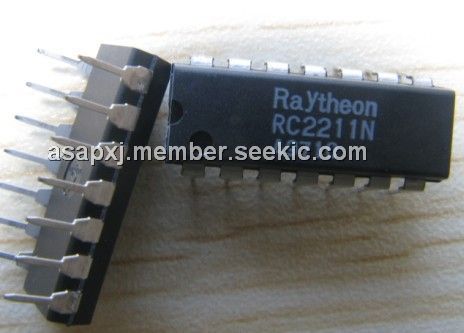

The RC2211N is a monolithic phase-locked loop (PLL) system especially designed for data communications. It is particularly well suited for FSK modem applications, and operates over a wide frequency range of 0.01 Hz to 300 kHz. RC2211N can accommodate analog signals between 2 mV and 3V, and can interface with conventional DTL, TTL and ECL logic families. The RC2211N consists of a basic PLL for tracking an input signal frequency within the passband, a quadrature phase detector which provides carrier detection, and an FSK voltage comparator which provides FSK demodulation. External components are used to independently set carrier frequency, bandwidth and output delay.

Parametrics

RC2211N absolute maximum ratings: (1)Supply Voltage: -20 +20 V; (2)Input Signal Level: 3 VRMS; (3)Storage Temperature Range: -65 to +150 ℃; (4)Operating Temperature Range: -0 +70 ℃; (5)Junction Temperature PDIP: +125℃; CerDIP +175℃; (6)Lead Soldering Temperature (60 sec.): +300℃; (7)Max. PD TA<50℃ PDIP: 468 mW; CerDIP 1042 mW.

Features

RC2211N features: (1)Wide frequency range: 0.01 Hz to 300 kHz; (2)Wide supply voltage range: 4.5V to 20V; (3)DTL/TTL/ECL logic compatibility; (4)FSK demodulation with carrier-detector; (5)Wide dynamic range: 2 mV to 3 VRMS; (6)Adjustable tracking range: ±1% to ±80%; (7)Excellent temperature stability: 20 ppm/℃ typical.

Diagrams

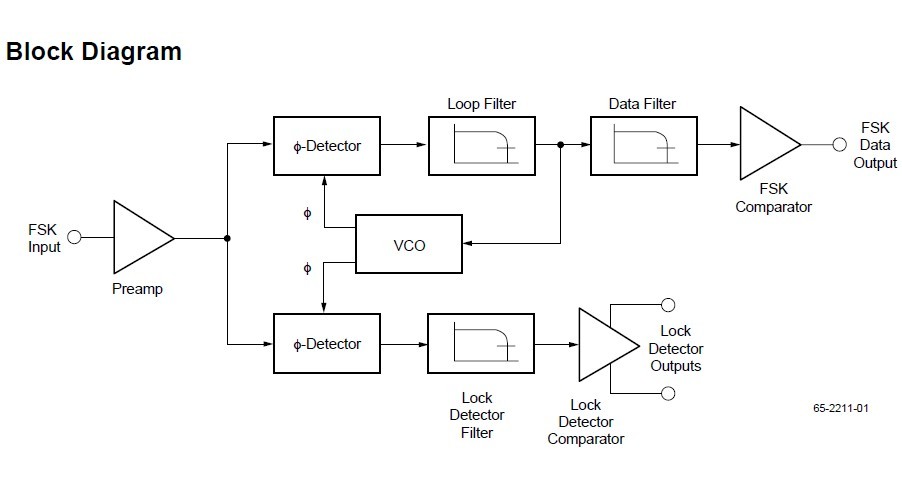

RC2211N Block Diagram
