Product Summary

The PE-65778NL is a Single Through Hole Transformer.

Parametrics

PE-65778NL absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±5%): CT:1CT; (2)OCL @ 25℃ (mH MIN): 1.20; (3)CW/W (pF MAX): 40; (4)LL (μH MAX): 1.00; (5)DCR Pri (Ω MAX): 1.00; (6)DCR Sec (Ω MAX): 1.00; (7)Package/ Schematic: HC/4; (8)Primary Pins: 1-5.

Features

PE-65778NL features: (1)RoHS-6 peak reflow temperature rating: 245℃; (2)Extended and standard temperature range; (3)Dual and single through hole models available; (4)Models matched to leading IC transceivers; (5)UL recognized; (6)Isolation Voltage: 1500 Vrms MIN.

Diagrams

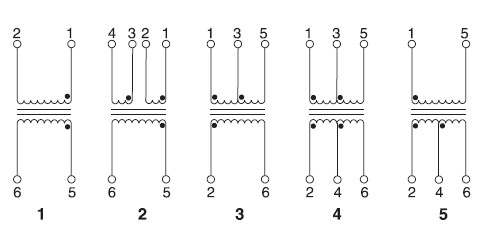

PE-65778NL circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE-65778NL
PE-65778NL
Pulse
Transformers Audio & Signal TRANSFORMER
Data Sheet
0-190: $1.72
190-500: $1.27
500-1000: $1.26
1000-2500: $1.23
