Product Summary

The PC-17T1 is a Photocoupler. It consists of a Gallium Arsenide Infrared Emitting. The applications of the PC-17T1 include Interface between two circuits of different potential, Vending Machine, Cordless Phone, Key Phone, Fax, Motor Control, Programmable Logic Control, Power Supply, Computer Terminals.

Parametrics

PC-17T1 absolute maximum ratings: (1)Forward Current: 50 mA; (2)Reverse Voltage: 5 V; (3)Peak Forward Current: 1 A; (4)Power Dissipation: 70 mW; (5)Collector-Emitter Breakdown Voltage: 35 V; (6)Emitter-Collector Breakdown Voltage: 6 V; (7)Collector Current: 50 mA; (8)Collector Power Dissipation: 150 mW; (9)Input to Output Isolation Voltage: AC2500 Vrms; (10)Storage Temperature: -55~+125 ℃; (11)Operating Temperature: -30~+100 ℃; (12)Lead Soldering Temperature: 260 ℃; (13)Total Power Dissipation: 200 mW.

Features

PC-17T1 features: (1)Small Package Size; (2)Collector-Emitter Voltage : Min.35V; (3)Current Transfer Ratio: Min.50% (at IF=5mA, VCE=5V); (4)Electrical Isolation Voltage: AC2500Vrms; (5)UL Recognized File No. E107486.

Diagrams

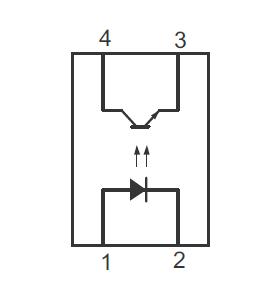

PC-17T1 diagram
