Product Summary
The OP279GSZ is a Rail-to-Rail High Output Current Operational Amplifier. The applications of the device include Multimedia, Telecom, DAA Transformer Driver, LCD Driver,, Low Voltage Servo Control Modems and FET Drivers.
Parametrics
OP279GSZ absolute maximum ratings: (1)Supply Voltage: 16 V; (2)Input Voltage: 16 V; (3)Differential Input Voltage: ±1 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: –65℃ to +150℃; (6)Operating Temperature RangeG: –40℃ to +85℃; (7)Junction Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃.
Features
OP279GSZ features: (1)Rail-to-Rail Inputs and Outputs; (2)High Output Current: ±60 mA; (3)Single Supply: 5 V to 12 V; (4)Wide Bandwidth: 5 MHz; (5)High Slew Rate: 3 V/μs; (6)Low Distortion: 0.01%; (7)Unity-Gain Stable; (8)No Phase Reversal; (9)Short-Circuit Protected; (10)Drives Capacitive Loads: 10 nF.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP279GSZ |
|

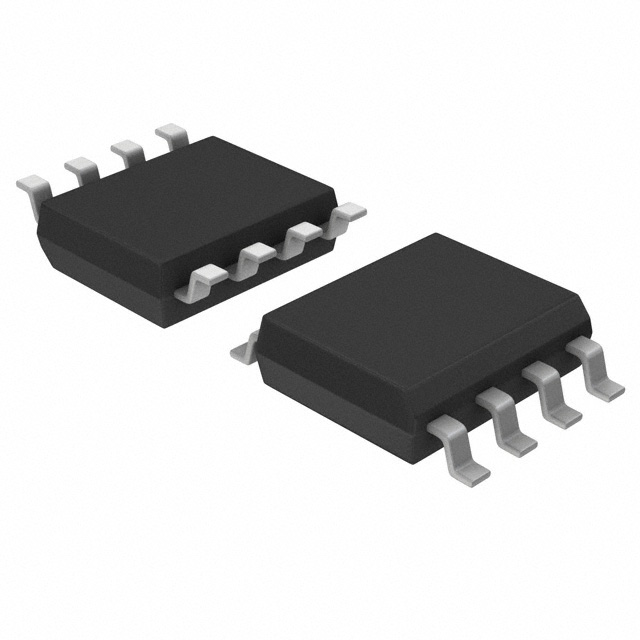

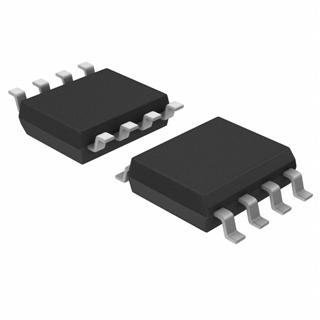

IC OPAMP GP R-R 5MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP279GSZ-REEL |
|
IC OPAMP GP R-R 5MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP279GSZ-REEL7 |
|
IC OPAMP GP R-R 5MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
