Product Summary

The NL322522T-1R5J is an Inductor For General Applications. It is suitable for Personal computers, hard disk drives, and other electronic equipment.

Parametrics

NL322522T-1R5J absolute maximum ratings: (1)Operating temperature range: –20 to +85℃; (2)Storage temperature range: –40 to +85℃.

Features

NL322522T-1R5J features: (1)The NL series are available in 5 form factors ranging from 2016 to 5650; (2)Utilizing a miniaturized winding structure, these products provide high Q characteristics; (3)Inductance tolerance is ±5 percent.

Diagrams

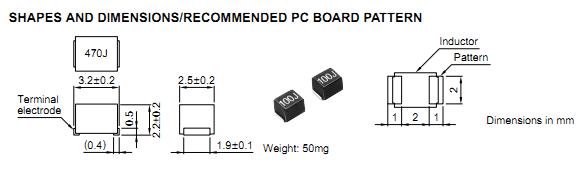

NL322522T-1R5J dimensions
