Product Summary
The NCP1580DR2 is a voltage mode PWM controller designed to operate from a 5.0 V or 12 V supply and produce an output voltage as low as 0.8 V. This 8.pin device provides an optimal level of integration to reduce size and cost of the power supply. The NCP1580DR2 has a fixed 350 kHz oscillator and soft.start function. The NCP1580DR2 provides a 1.5 A floating gate driver design to drive N.Channel MOSFET in a synchronous configuration. Adaptive non overlap circuitry reduces switching losses by preventing simultaneous conduction of both outputs. Protection features include thermal shutdown and undervoltage lockout (UVLO). The NCP1580DR2 is available in an 8.pin SOIC package. The applications of the NCP1580DR2 include Graphics Cards, Desktop Computers, Servers/Networking, DSP and FPGA Power Supply, DC-DC Regulator Modules.
Parametrics
NCP1580DR2 absolute maximum ratings: (1)Main Supply Voltage Input VCC: -0.3V to 15V; (2)Bootstrap Supply Voltage Input BST: 30V wrt/GND, 15 V wrt/PHASE, -0.3V(min); (3)Switching Node (Bootstrap Supply Return) PHASE: 30V(max) -0.7V, t＞50 ns, -2.0V, t＜50 ns; (4)High Side Driver Output (Top Gate) TG: -0.3V wrt/PHASE to 30V wrt/GND, -0.3V to 15 V wrt/PHASE; (5) Low Side Driver Output (Bottom Gate) BG: -0.3V to 15V ; (6)Feedback FB: -0.3V to 5.5V; (7)COMP: -0.3V to 5.5V.
Features
NCP1580DR2 features: (1)Input Voltage Range from 4.5 V to 13.2 V; (2)350 kHz Internal Oscillator; (3)Boost Pin Operates to 26.5 V; (4)Voltage Mode PWM Control; (5)0.8 V±1.5% Internal Reference Voltage; (6)Adjustable Output Voltage; (7)Internal Soft-Start; (8)Internal 1.5 A Gate Drivers; (9)Adaptive Non-Overlap Circuit; (10)90% Max Duty Cycle; (11)Input UVLO; (12)Over temperature Protection; (13)Fully Specified over -40℃ to 85℃; (14)Pb-Free Package is Available.

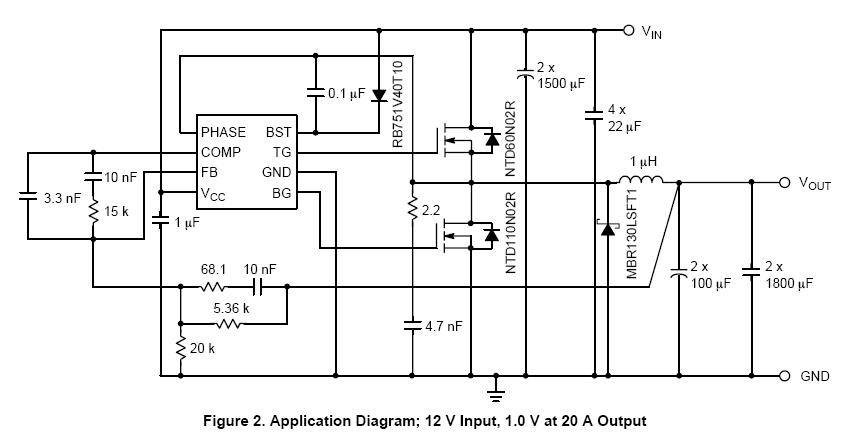

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP1580DR2 |
ON Semiconductor |
Voltage Mode PWM Controllers Low Voltage |
Data Sheet |
Negotiable |
|
||||
|
NCP1580DR2G |
ON Semiconductor |
Voltage Mode PWM Controllers Low Voltage Synchronous Buck |
Data Sheet |
Negotiable |
|
||||
