Product Summary

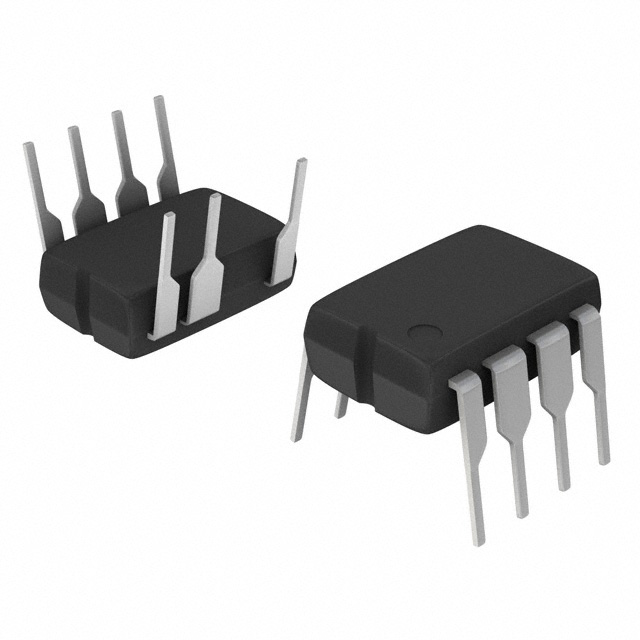

The NCP1014AP100G is a self-supplied monolithic switcher for low standby. The NCP1014AP100G integrates a fixed-frequency current-mode controller and a 700 V voltage MOSFET. Housed in a PDIP-7 or SOT-223 package, the NCP1014AP100G offers everything needed to build a rugged and low-cost power supply, including soft-start, frequency jittering, short-circuit protection, skip-cycle, a maximum peak current set-point and a Dynamic Self-Supply (no need for an auxiliary winding). Unlike other monolithic solutions, the device is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65-100-130 kHz). The applications of the NCP1014AP100G include Low Power ac-dc Adapters for Chargers, Auxiliary Power Supplies (USB, Appliances, TVs, etc.).

Parametrics

NCP1014AP100G absolute maximum ratings: (1)Power Supply Voltage on all pins, except Pin 5 (Drain), VCC: -0.3 to 10 V; (2)Drain Voltage: -0.3 to 700 V; (3)Drain Current Peak during Transformer Saturation, IDS(pk): 2 x Ilim max A; (4)Maximum Current into Pin 1 when Activating the 8.7 V Active Clamp, I_VCC: 15 mA; (5)Maximum Junction Temperature, TJmax, 150℃; (6)Storage Temperature Range: -60 to +150℃; (7)ESD Capability, Human Body Model (All pins except HV): 2.0 kV; (8)ESD Capability, Machine Model: 200 V.

Features

NCP1014AP100G features: (1)Built-in 700 V MOSFET with Typical RDSon of 11 ohm and 22 ohm; (2)Large Creepage Distance Between High-Voltage Pins; (3)Current-Mode Fixed Frequency Operation: 65 kHz -100 kHz - 130 kHz; (4)Skip-Cycle Operation at Low Peak Currents Only: No Acoustic Noise! (5)Dynamic Self-Supply, No Need for an Auxiliary Winding; (6)Internal 1.0 ms Soft-Start; (7)Latched Overvoltage Protection with Auxiliary Winding Operation; (8)Frequency Jittering for Better EMI Signature; (9)Auto-Recovery Internal Output Short-Circuit Protection; (10)Below 100 mW Standby Power if Auxiliary Winding is Used; (11)Internal Temperature Shutdown; (12)Direct Optocoupler Connection; (13)SPICE Models Available for TRANsient Analysis; (14)Pb-Free Packages are Available.

Diagrams

NCP1014AP100G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NCP1014AP100G
NCP1014AP100G

ON Semiconductor

Current Mode PWM Controllers Low Standby Power Monolithic Switcher

Data Sheet

0-1: $0.63
1-25: $0.57
25-100: $0.44
100-500: $0.39
