Product Summary
Parametrics
Logic Type: Inverter, Buffer
Number of Inputs: 1
Features: Schmitt Trigger
Voltage - Supply: 1.65 V ~ 5.5 V
Current - Output High, Low: 32mA, 32mA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Current - Quiescent (Max): 1µA

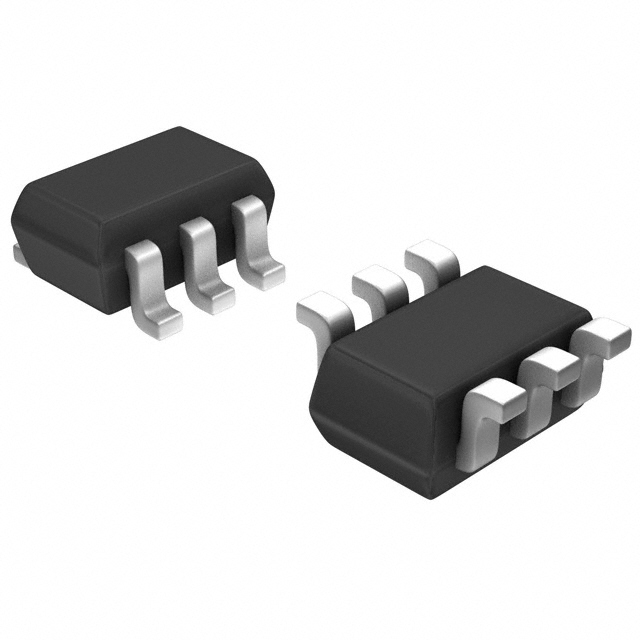

Supplier Device Package: SC-70-6
Package / Case: 6-TSSOP, SC-88, SOT-363
Number of Circuits: 2
Manufacturer: Fairchild Semiconductor
Logic Level - Low: 0.2 V ~ 1.2 V
Logic Level - High: 1.4 V ~ 3.6 V
Series: 7WZ
Max Propagation Delay @ V, Max CL: 4.9ns @ 5V, 50pF
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NC7WZ14P6X |
Fairchild Semiconductor |
Inverters UHS Dual Inverter |
Data Sheet |
|
|
||||||||||||
 |
NC7WZ14P6X_Q |
Fairchild Semiconductor |
Inverters UHS Dual Inverter |
Data Sheet |
Negotiable |
|
||||||||||||
