Product Summary
Parametrics
Logic Type: Inverter, Buffer
Number of Circuits: 1
Number of Inputs: 1
Features: Schmitt Trigger
Voltage - Supply: 1.65 V ~ 5.5 V
Current - Output High, Low: 32mA, 32mA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Current - Quiescent (Max): 1µA

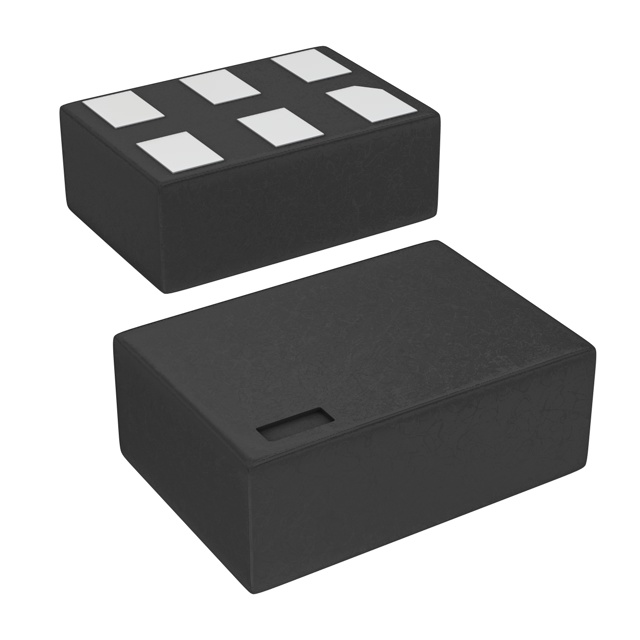

Package / Case: 6-UFDFN
Manufacturer: Fairchild Semiconductor
Series: 7SZ
Logic Level - Low: 0.2 V ~ 1.2 V
Logic Level - High: 1.4 V ~ 3.6 V
Max Propagation Delay @ V, Max CL: 5.9ns @ 5V, 50pF
Supplier Device Package: 6-MicroPak
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NC7SZ14L6X |
Fairchild Semiconductor |
Inverters Inv Sch Trigger Inp |
Data Sheet |
|
|
||||||||||||
|
NC7SZ14L6X_Q |
Fairchild Semiconductor |
Inverters Inv Sch Trigger Inp |
Data Sheet |
|
|
||||||||||||
