Product Summary

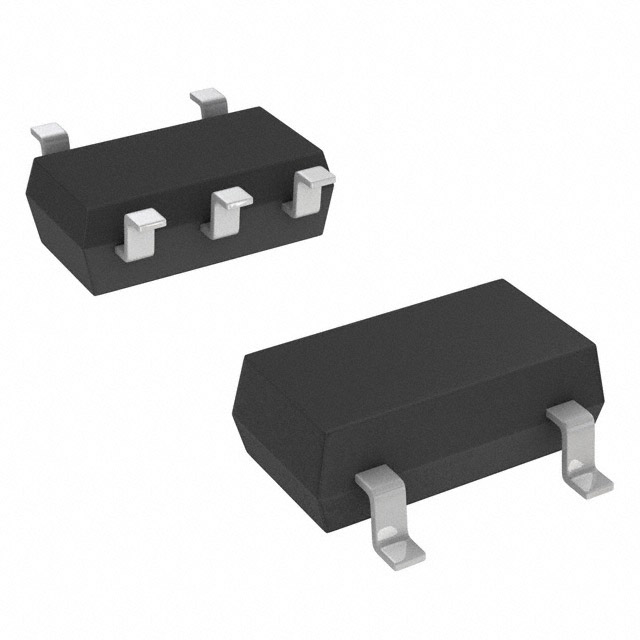

The NC7SZ00P5X is a single two-input NAND gate from Fairchilds ultra-high speed series of tinylogic.
Parametrics
NC7SZ00P5X absolute maximum ratings: (1)VCC, Supply voltage: 6.0V; (2)VIN, DC input voltage: 6.0V; (3)VOUT, DC output voltage: 6.0V; (4)IIK, DC Input diode current: -50/+20mA; (5)IOK, DC output diode current: -50/+20mA; (6)IOUT, DC output current: ±50mA; (7)TSTG, storage temperature range: +150℃; (8)TJ, junction temperature under bias: +150℃; (9)ESD: 4000/2000V.
Features
NC7SZ00P5X features: (1)Ultra-high speed: tPD 2.4ns into 50pF at 5V VCC; (2)High output drive: ±24mA at 3V VCC; (3)Broad VCC operating range: 1.65V to 5.5V; (4)Matches performance of LCX operated at 3.3V VCC; (5)Power down high-impedance inputs/outpus; (6)Over-voltage tolerance inputs facilitate 5V to 3V translation; (7)Porprietary noise/EMI reduction circuitry; (8)Ultra-small microPak packages; (8)Space-saving SOT23 and SC70 package.

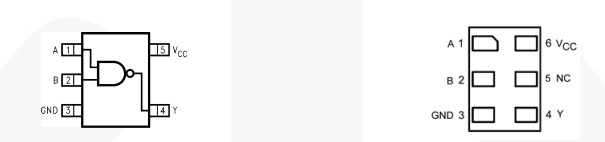

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NC7SZ00P5X |
Fairchild Semiconductor |
Gates (AND / NAND / OR / NOR) UHS 2-Inp NAND Gate |
Data Sheet |
|
|
||||||||||||
