Product Summary
Parametrics
Logic Type: Inverter, Buffer
Number of Circuits: 1
Number of Inputs: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Features: -
Current - Quiescent (Max): 1µA

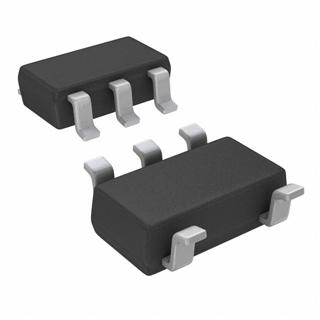

Supplier Device Package: SOT-23-5
Package / Case: SC-74A, SOT-753
Voltage - Supply: 2 V ~ 6 V
Logic Level - Low: 0.5V
Logic Level - High: 1.5V
Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
Current - Output High, Low: 2.6mA, 2.6mA
Series: 7S
Manufacturer: Fairchild Semiconductor
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NC7S04M5X |
Fairchild Semiconductor |
Inverters Inverter |
Data Sheet |
|
|
||||||||||||
|
NC7S04M5X_Q |
Fairchild Semiconductor |
Inverters Inverter |
Data Sheet |
Negotiable |
|
||||||||||||
